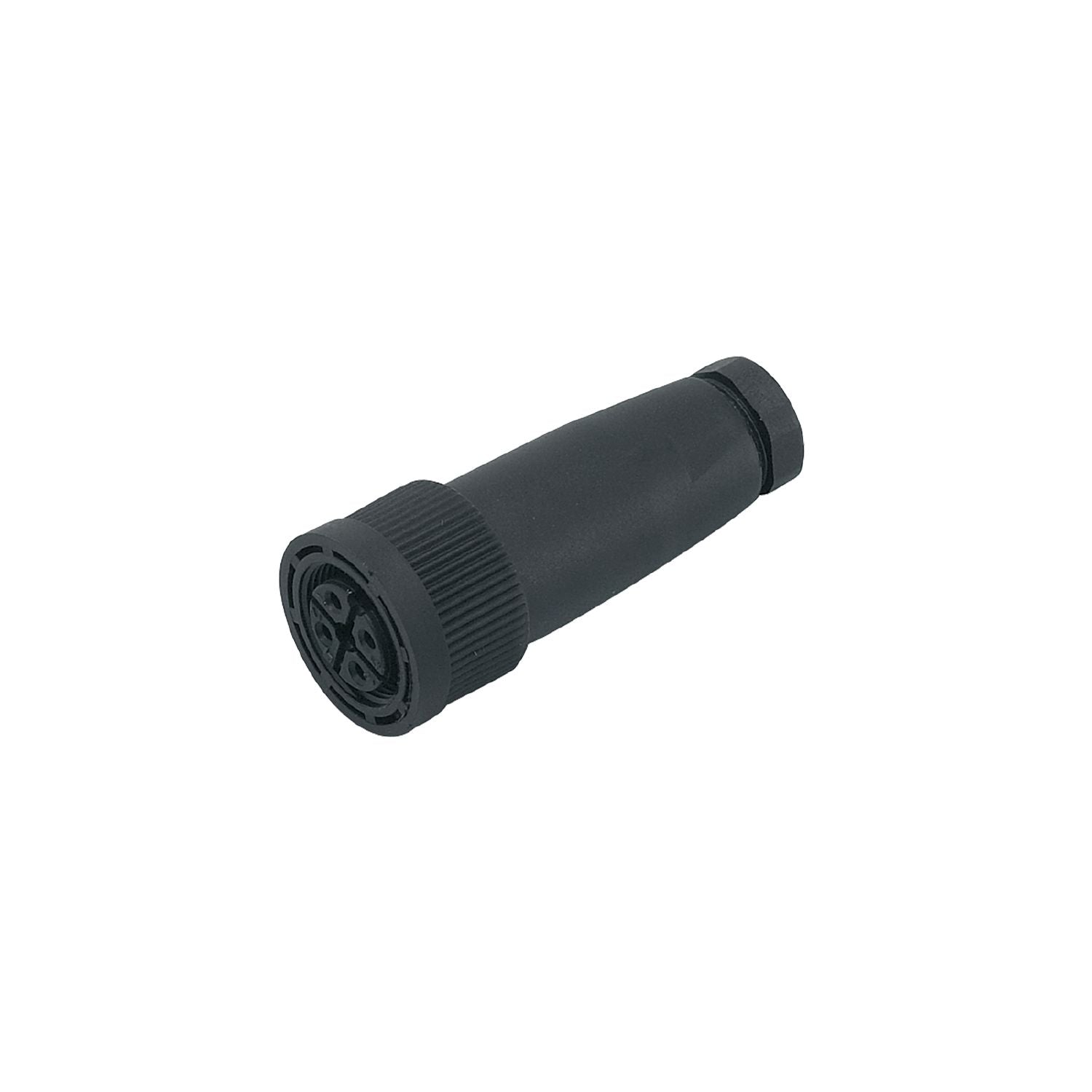

IFM E10137 - Wirable socket SDOGJ040PLSFKPG

Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
Safe cable connection with screw terminals

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 65

Weight [g]	26.6
Dimensions [mm]	25 x 25 x 56
Materials	PA
Moulded-body material	PA
Material nut	ULTRAMID

Pack quantity	1 pcs.

Electrical connection

	terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x M18, straight; coding: A; Moulded body: PA; Locking: ULTRAMID

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10137-00 — 21.03.2022 —
