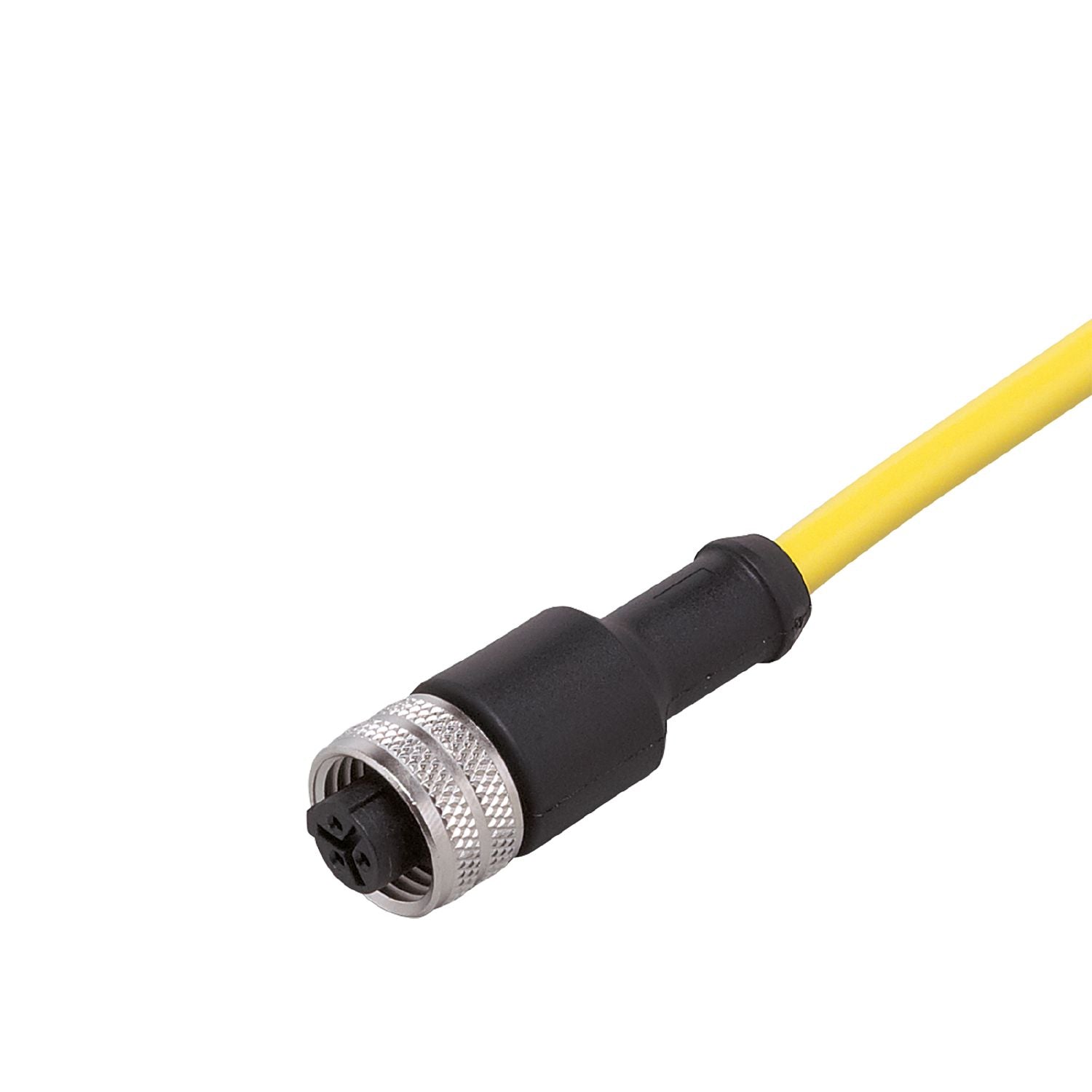

IFM E10189 - Connecting cable with socket ADOGA030MSS0002E03

Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Drag chain suitability

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4;(40° C)

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Tests / approvals

UL approval	Ta < 75 °C File number UL E191684

Weight [g]	88.1
Dimensions [mm]	14.5 x 14.5 x 42.5
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 2 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PVC, yellow, Ø 5.2 mm; 3 x (42 x Ø 0.1 mm ) / AWG 22

Electrical connection - socket

Connection	Connector: 1 x 1/2", straight; coding: C; Moulded body: TPU; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10189-01 — 05.11.2020 —
