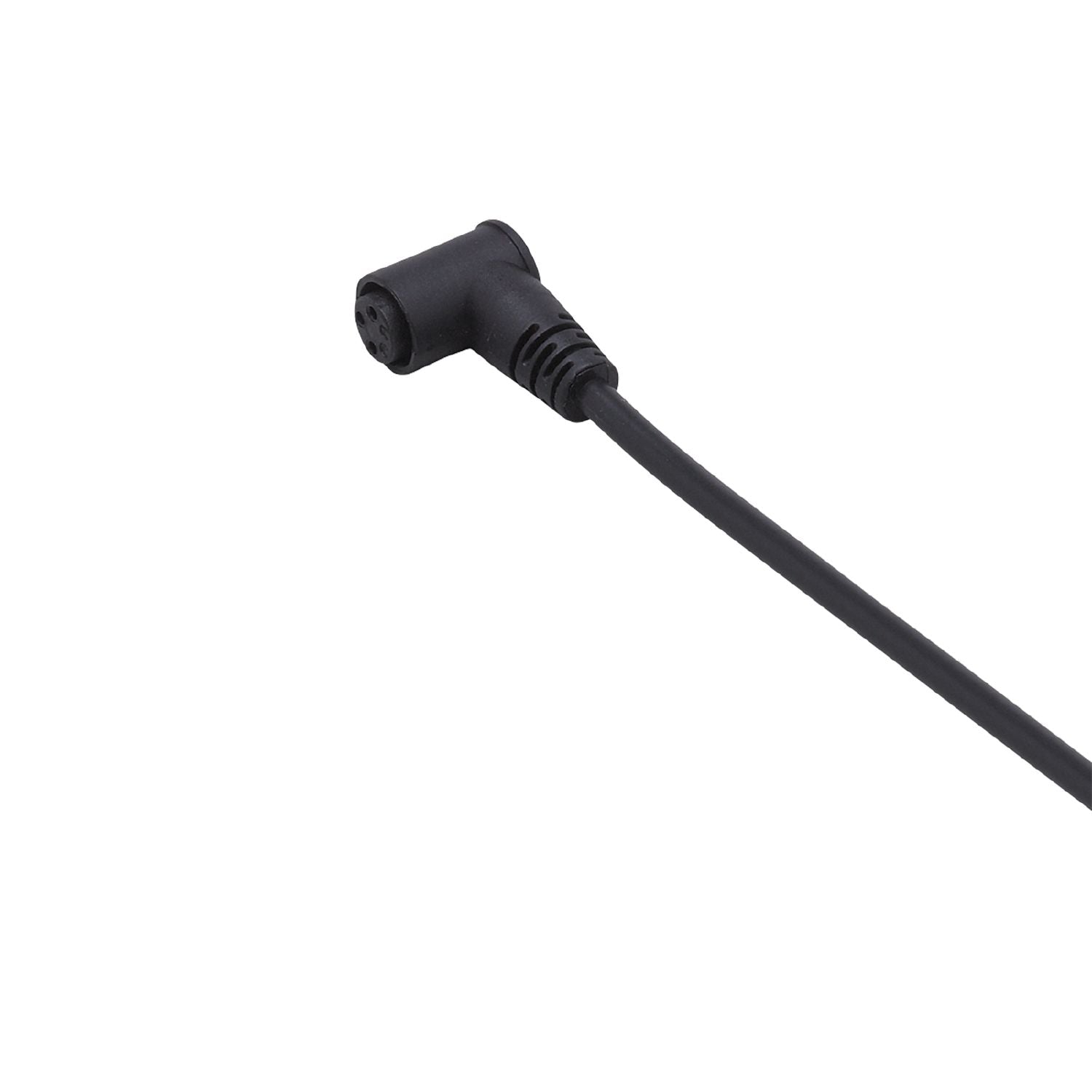

IFM E10217 - Connecting cable with socket ADOAG030--S0002E03

Angled type for use where space is restricted.
Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
Wide operating temperature range

Operating voltage [V]	< 60 AC/DC

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65

Weight [g]	33
Dimensions [mm]	13.3 x 8.5 x 20.5
Materials	PUR
Moulded-body material	PUR

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PVC, black, Ø 3 mm; 3 x 0.14 mm² (18 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M8, angled; coding: A; Moulded body: PUR

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10217-01 — 23.06.2010 —
