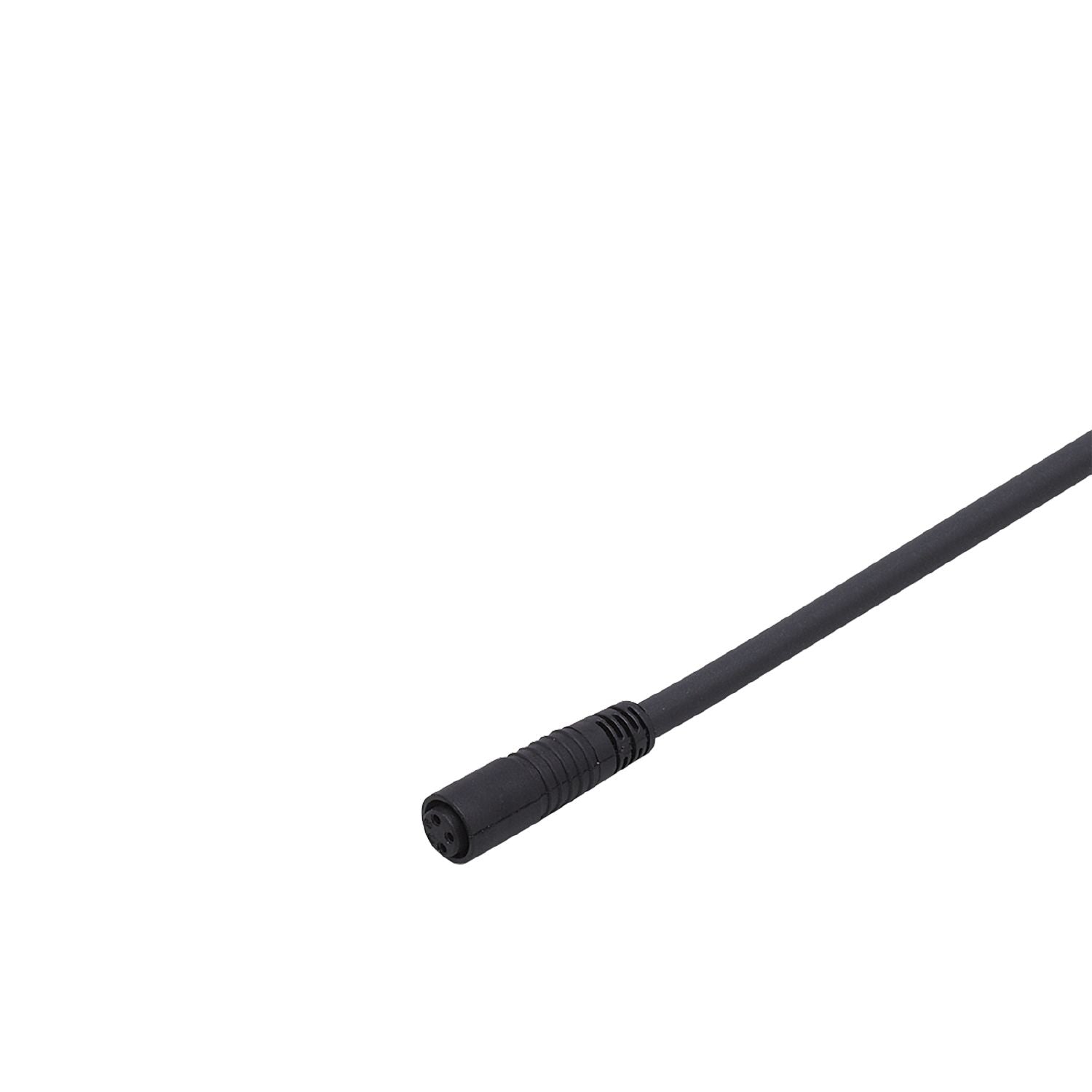

IFM E10268 - Connecting cable with socket ADOGG030--S0005A03

Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
Wide operating temperature range

Special feature	Halogen-free

Operating voltage [V]	< 60 AC/DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 65

Weight [g]	140.8
Dimensions [mm]	8.5 x 8.5 x 30
Materials	TPU
Moulded-body material	TPU

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 4.5 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M8, straight; coding: A; Moulded body: TPU

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10268-01 — 07.06.2010 —
