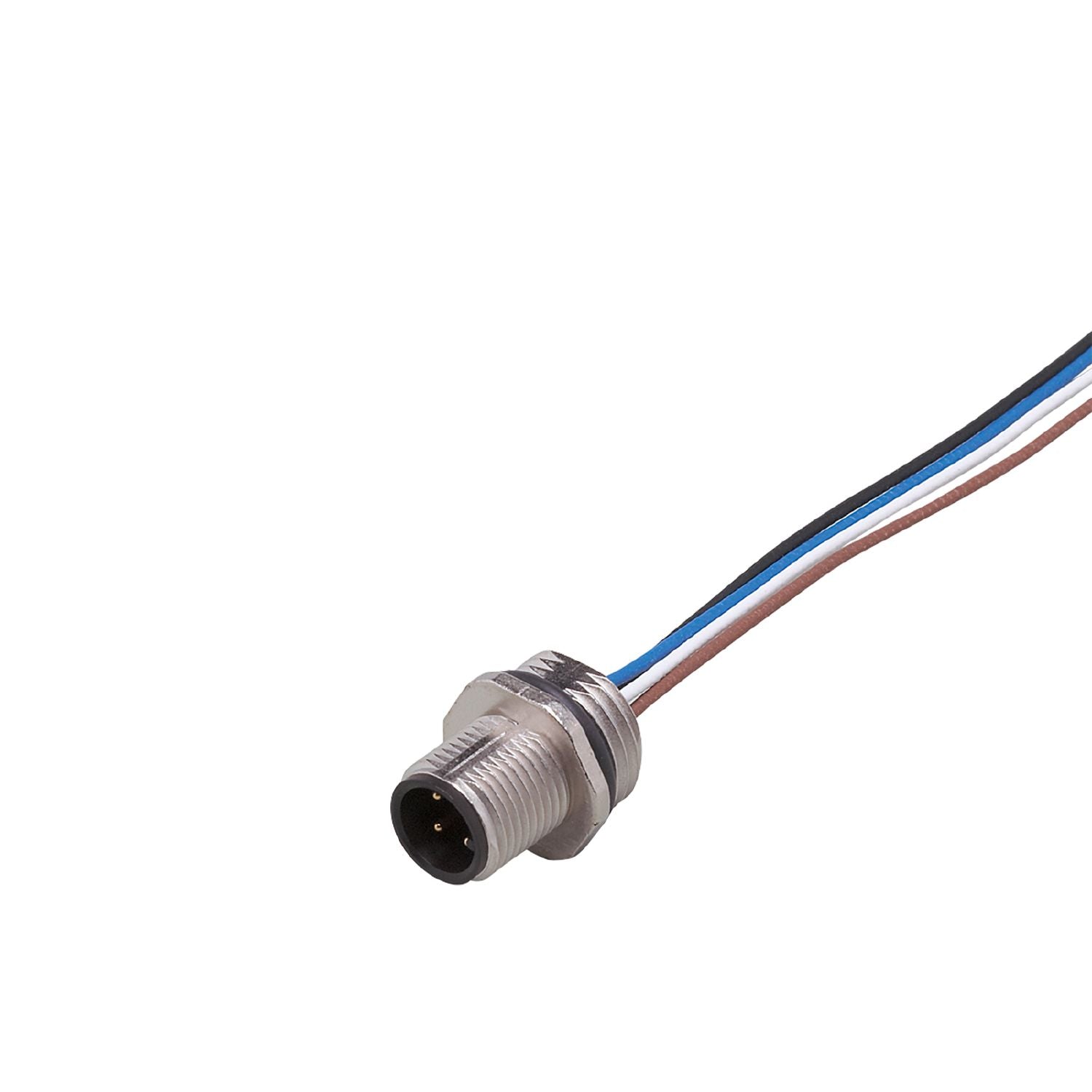

IFM E10411 - Adapter plug ESTGH040MSS00,5E04 (PG9)

User-friendly equipment of distributors and housings with connections for connectors.
Easy and quick installation into the container wall.
Robust metal version.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	17.1
Dimensions [mm]	18 x 18 x 20
Mounting thread	PG 9
Materials	diecast zinc nickel-plated
Moulded-body material	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PVC; 4 x 0.25 mm²

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: diecast zinc, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10411-01 — 10.06.2010 —
