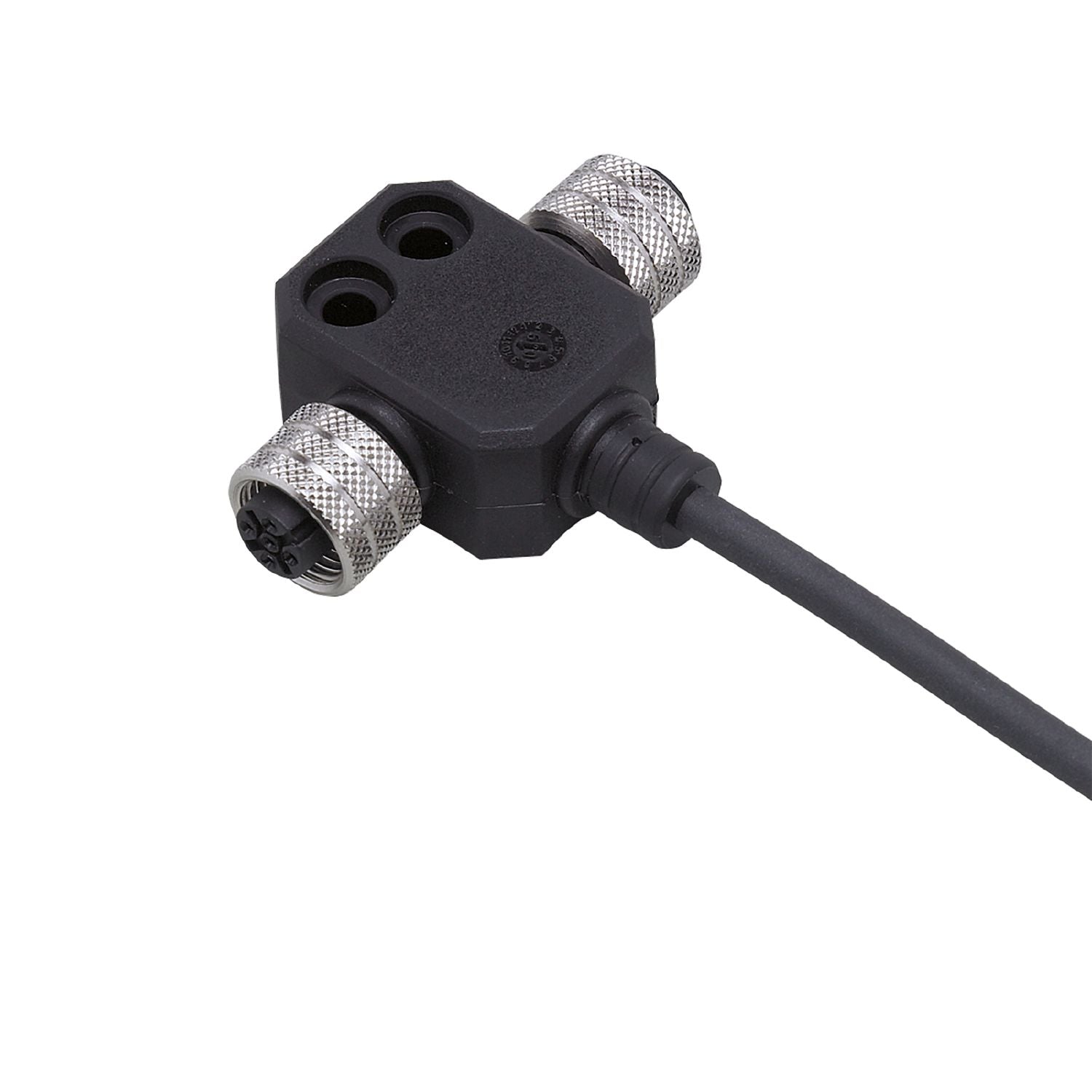

IFM E10437 - Y-splitter ZDO2H040MSS0005H05

Connection technology meets the M12 standard (EN 61076).
Permanent, reliable sealing even when mounted without tools.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	10...55 DC
Max. current load per module/slot [A]	4
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Weight [g]	160.7
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated
Number of ports splitter box	2
Connector type	M12

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 5 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 2 x M12; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm
