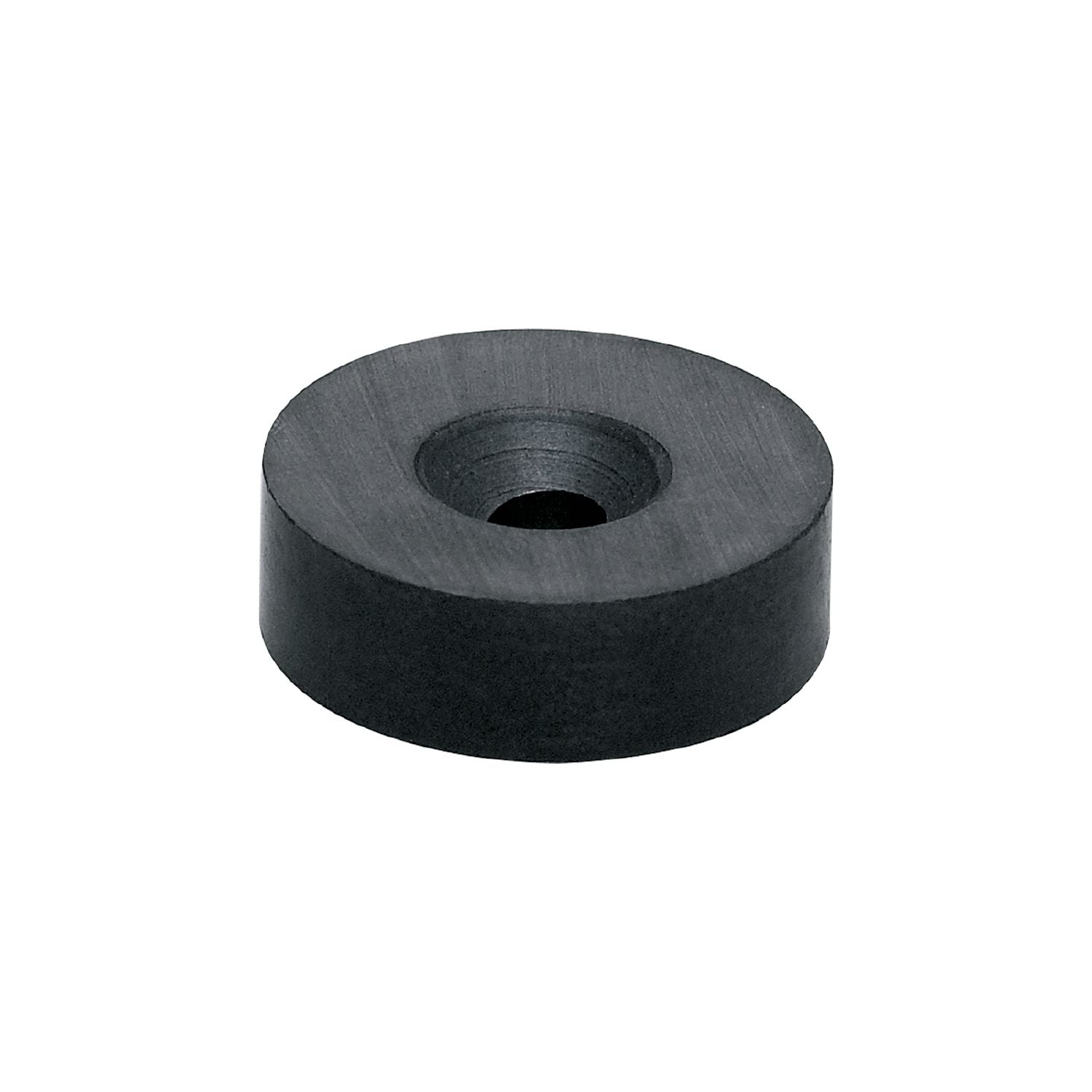

IFM E10751 - Damping magnet MAGNET M3.0 HARD FERRITE

For ensuring a long sensing range.
For use in combination with magnetic sensors.
Hidden installation behind aluminium or stainless steel is possible.
Wide operating temperature range
Operating conditions

Ambient temperature [°C]	-25...250

Weight [g]	10.33
Dimensions [mm]	Ø 20 / L = 6.5
Materials	hard ferrite HF 24/23
Magnetic field strength [mT]	110

Pack quantity	1 pcs.
