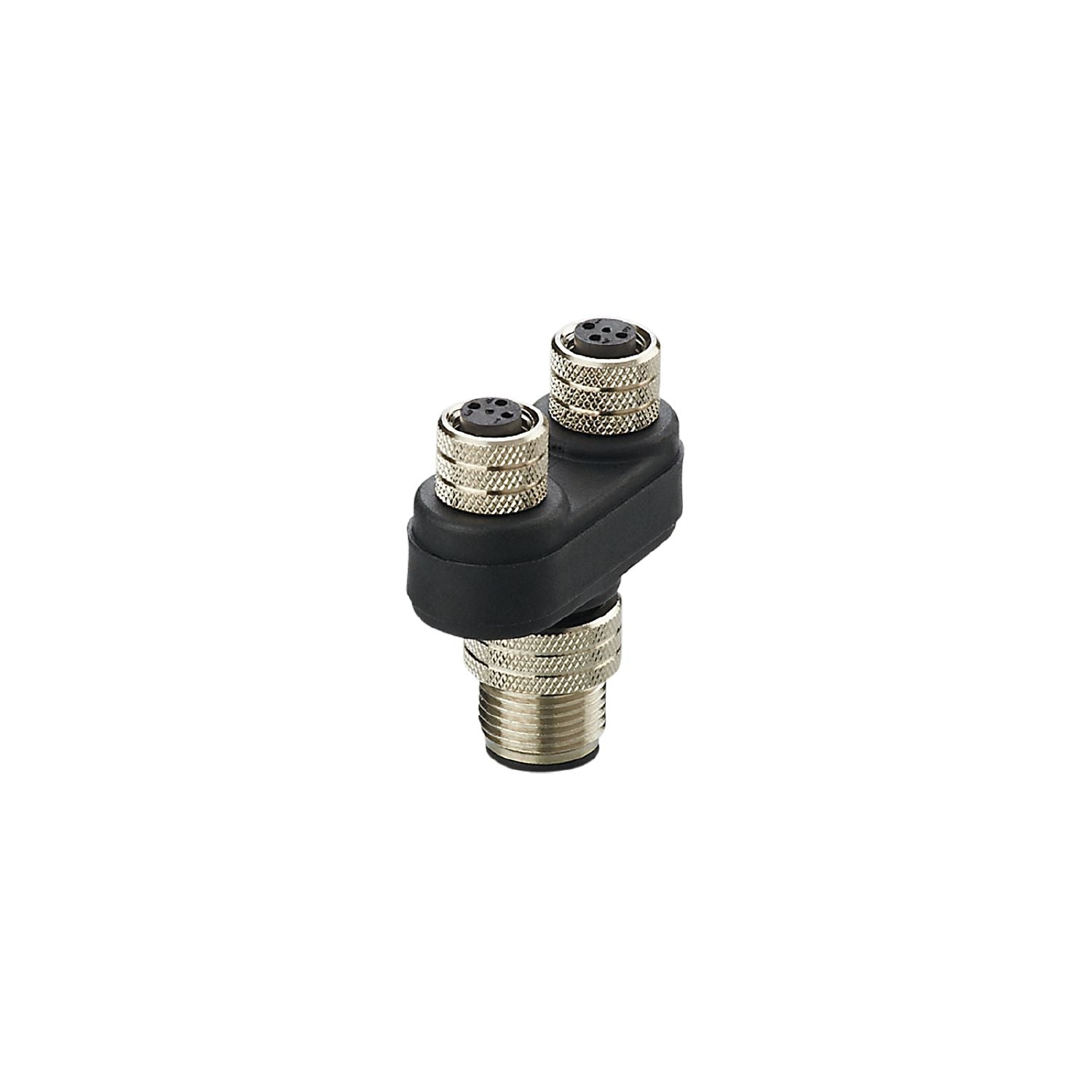

IFM E10802 - Y-splitter ZDO2F030MSS0000-00STGH040MSS

For use in applications with many inputs and outputs where space is restricted.
High protection rating for the requirements of harsh industrial environments.
Gold-plated contacts for reliable electrical connections.
Wide operating temperature range

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 60 DC
Protection class	III
Max. current load per module/slot [A]	3
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	21.8
Dimensions [mm]	15.4 x 35.4 x 39.1
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated
Connector type	M8

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated
