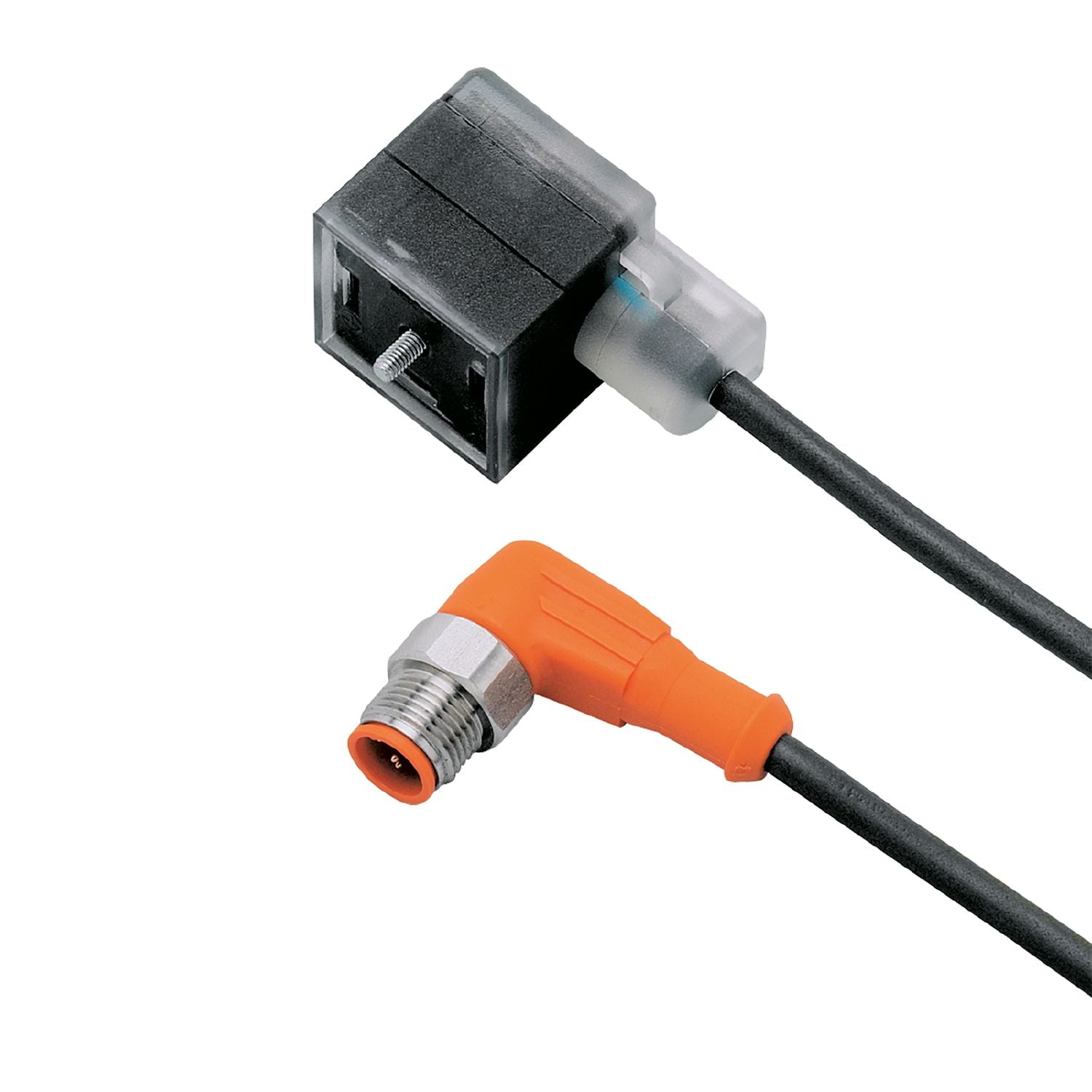

IFM E10818 - Jumper cable with valve plug VVSAB041MSS00,6A03STAH030VAS

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Clearly visible LED.
Robust rectangular connector

Special feature	Halogen-free

Operating voltage [V]	< 24 AC/DC
Overvoltage protection	yes;(VDR)

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	76
Dimensions [mm]	30 x 15 x 39
Materials	TPU
Moulded-body material	TPU
Material nut	stainless steel (1.4404 / 316L)

Displays / operating elements

Display	operation 1 x LED, yellow

Accessories

Items supplied	screw panel for labelling

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L)

Electrical connection

Connection	Cable: 0.6 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm )

Electrical connection - socket

	Connector: 1 x valve type A DIN, angled; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L)

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10818-00 — 15.12.2004 —
