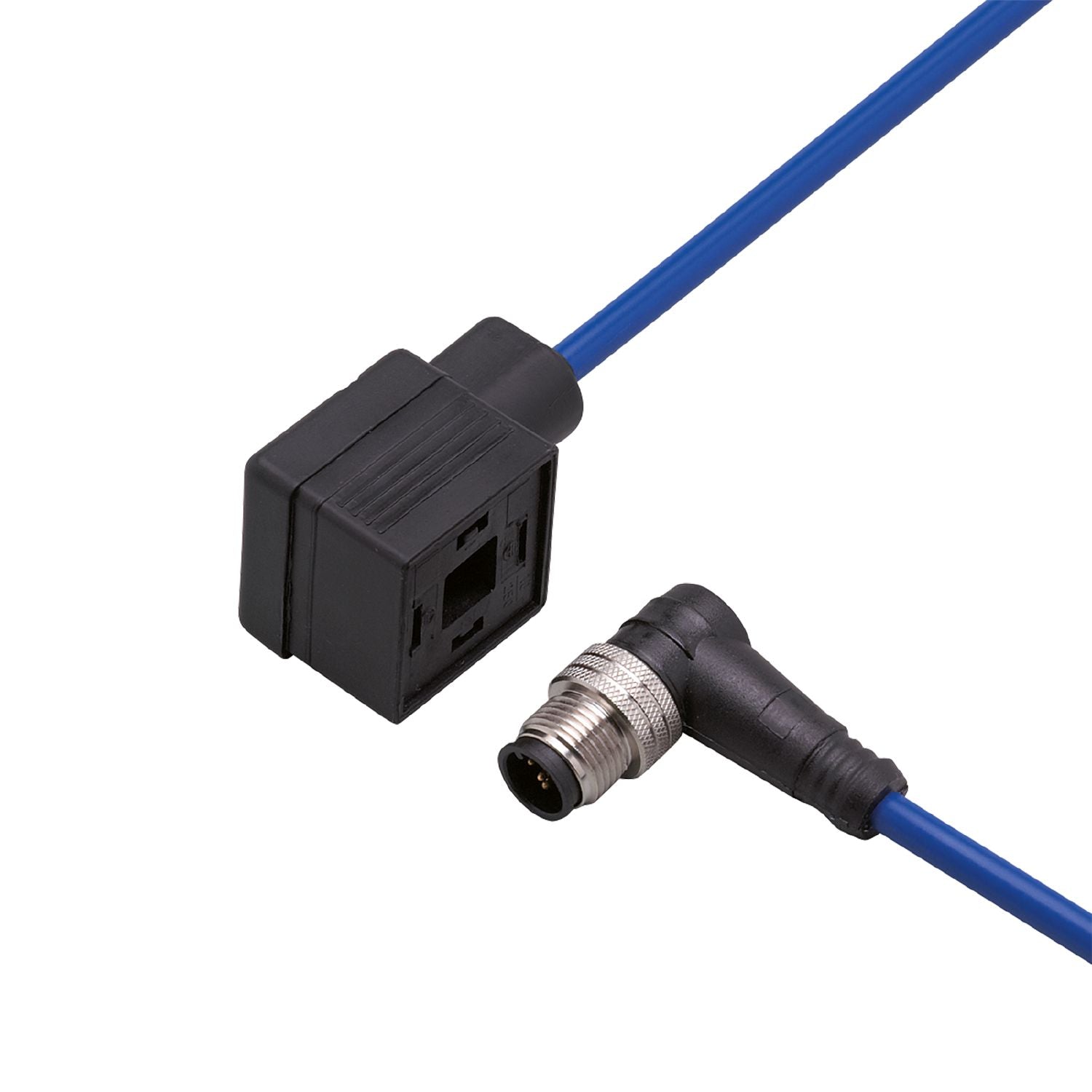

IFM E10822 - Jumper cable with valve plug VVDAA040--N00,6E02STAH020VAN

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
For applications in hazardous areas.
Robust rectangular connector

Application	NAMUR

Operating voltage [V]	< 15 DC

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	62.2
Dimensions [mm]	31 x 14.5 x 38
Materials	TPU; PUR
Moulded-body material	TPU / PUR
Material nut	stainless steel (1.4404 / 316L)

Accessories

Items supplied	screw panel for labelling

Remarks	For use in zone 0, group IIB or IIC the user has to avoid intensive electrostatic charge build-up at the sockets.
Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, angled; coding: A; Moulded body: TPU / PUR; Locking: stainless steel (1.4404 / 316L)

Electrical connection

Connection	Cable: 0.6 m, PVC, blue, Ø 5.1 mm; 2 x 0.5 mm²

Electrical connection - socket

	Connector: 1 x valve type A DIN, angled; Moulded body: TPU / PUR; Locking: stainless steel (1.4404 / 316L)

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10822-01 — 12.04.2012 —
