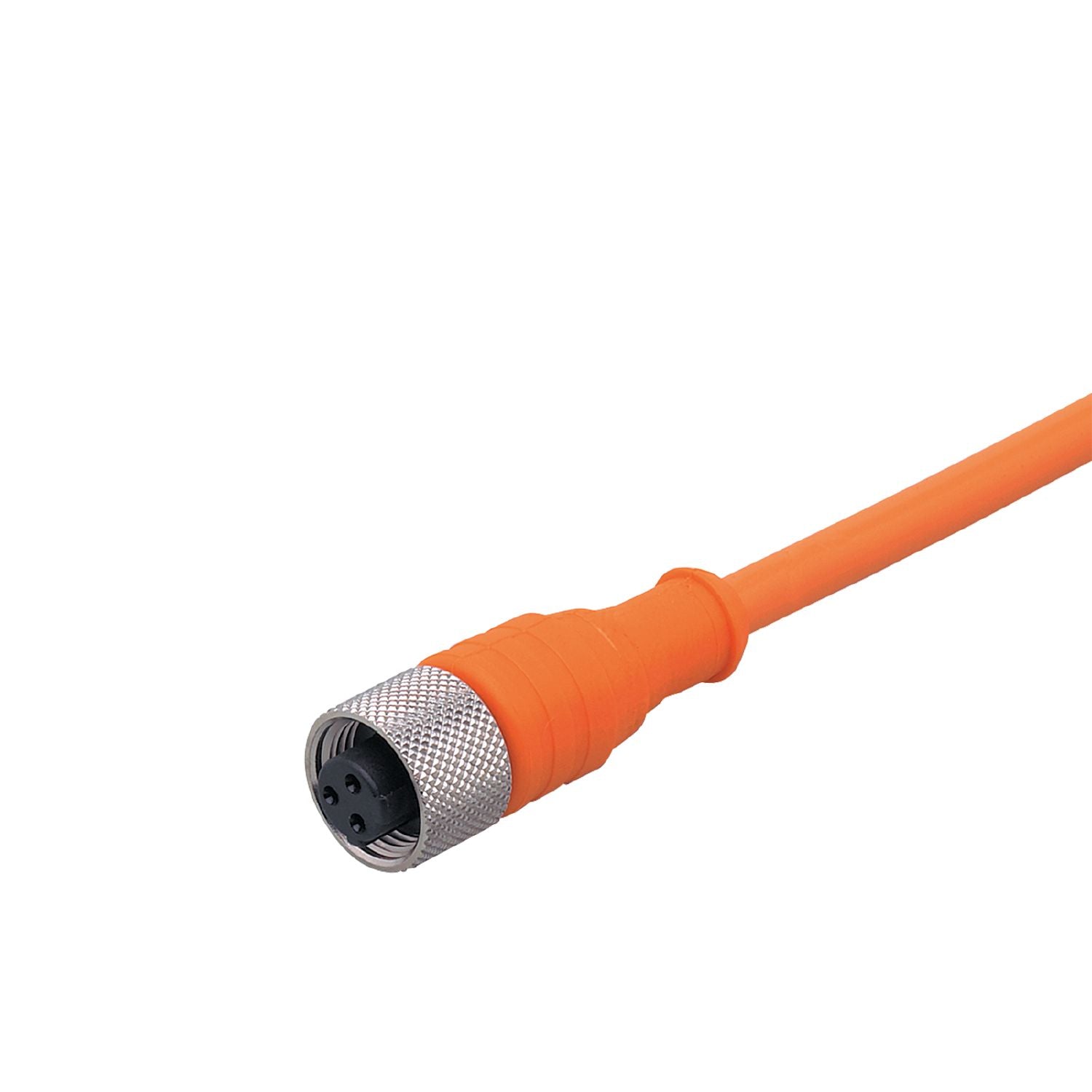

IFM E10867 - Connecting cable with socket ADOGH030MSS0002E03

High protection rating for the requirements of harsh industrial environments.
Permanent, reliable sealing even when mounted without tools.
High shock and vibration resistance.
Wide operating temperature range

Operating voltage [V]	< 250 AC / < 300 DC

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	87.5
Dimensions [mm]	15 x 15 x 43
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PVC, orange, Ø 5 mm; 3 x 0.34 mm² (19 x Ø 0.16 mm ) / AWG 22

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: C; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm
