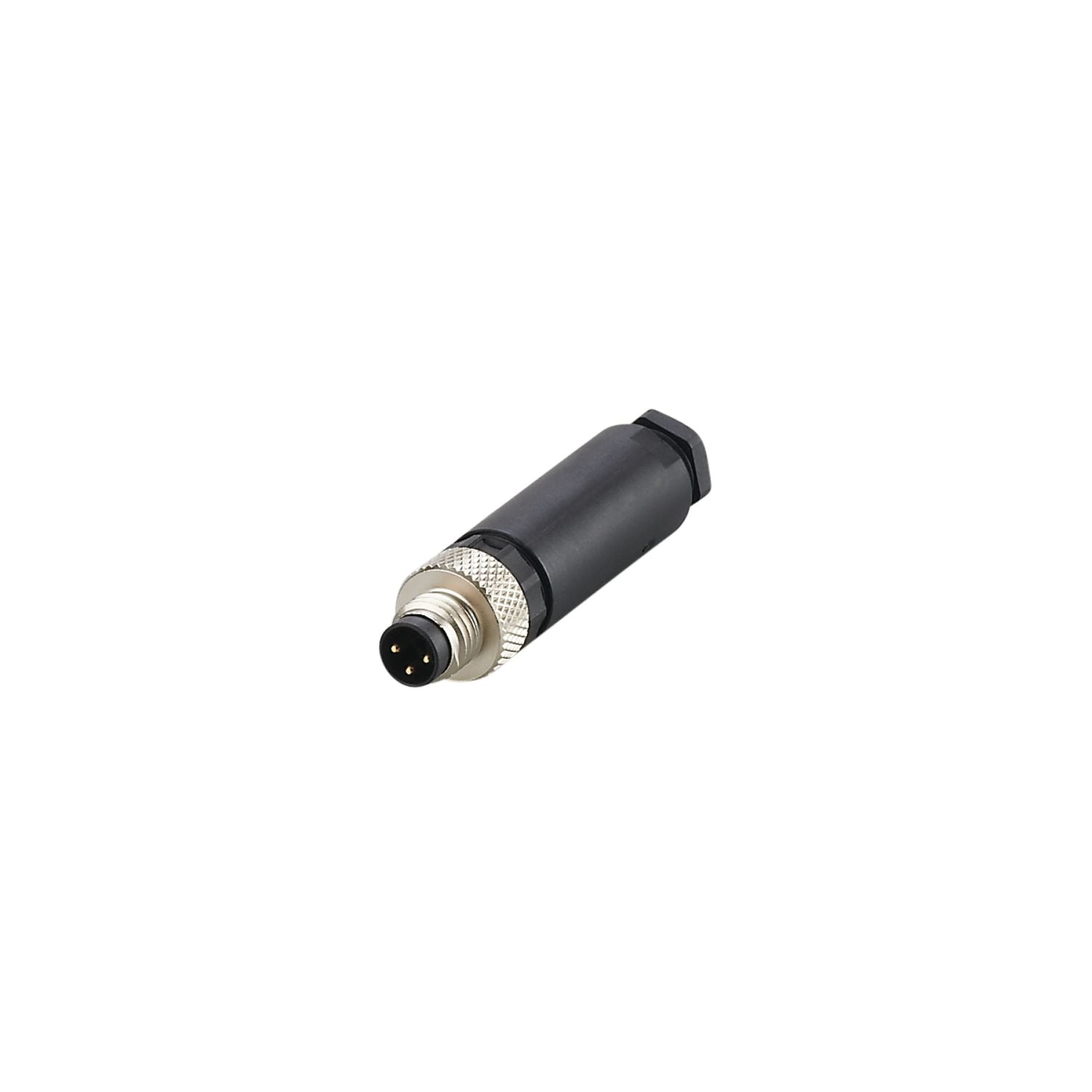

IFM E10919 - Wirable plug SSTGF030MSSFKPG

Gold-plated contacts for reliable electrical connections.
Safe cable connection with screw terminals.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Gold-plated contacts

Operating voltage [V]	< 60 DC

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	10.7
Dimensions [mm]	12 x 12 x 50
Materials	PA
Moulded-body material	PA
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 0.14...0.5 mm²; Cable sheath: Ø 3.5...5 mm

Electrical connection - plug

Connection	Connector: 1 x M8, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10919-01 — 06.06.2011 —
