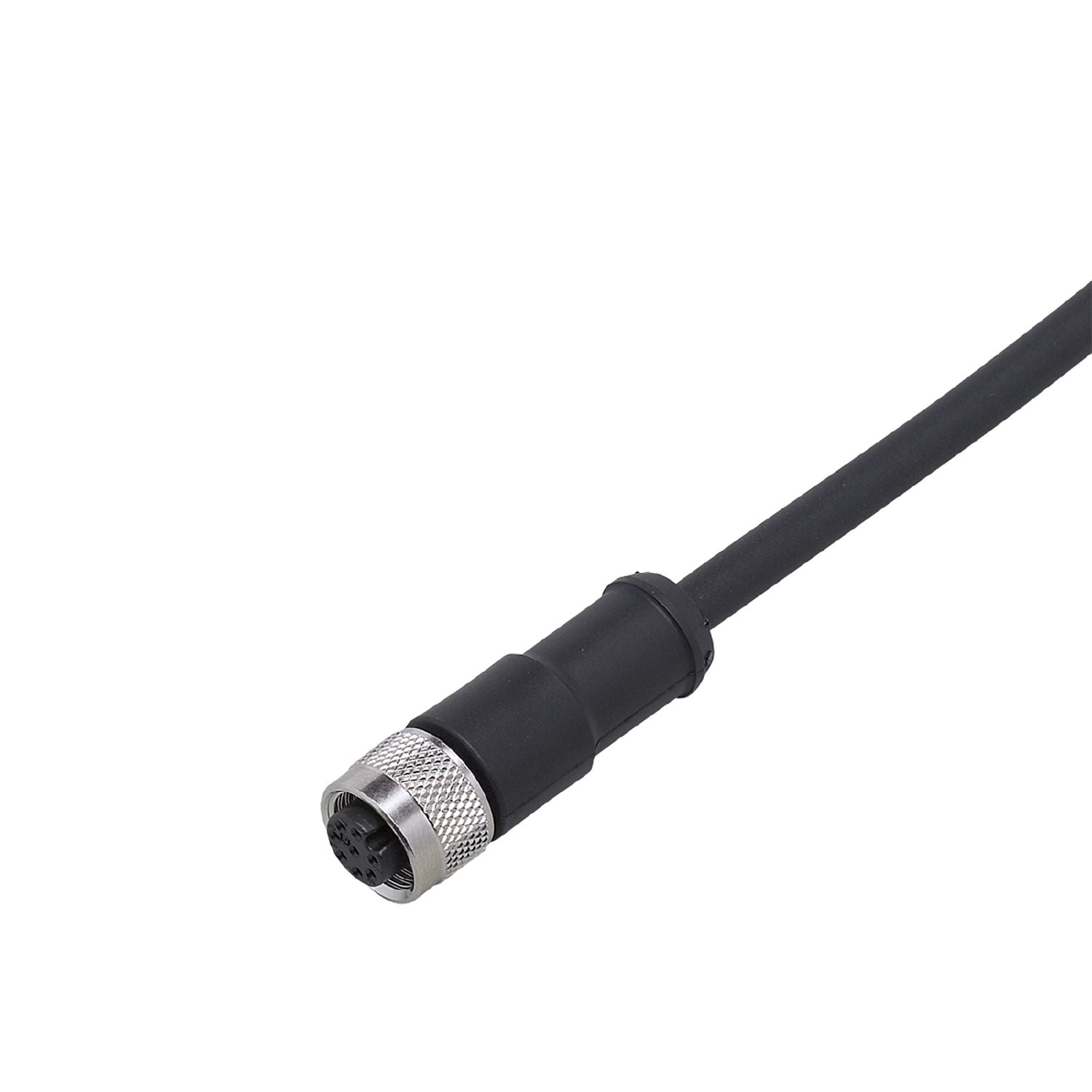

IFM E10976 - Connecting cable with socket ADOGH080MSS0005A06

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range

Operating voltage [V]	< 60 AC/DC
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	245.8
Dimensions [mm]	14.5 x 14.5 x 43.9
Materials	TPU
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, black, Ø 6 mm; 6 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E10976-01 — 16.06.2010 —
