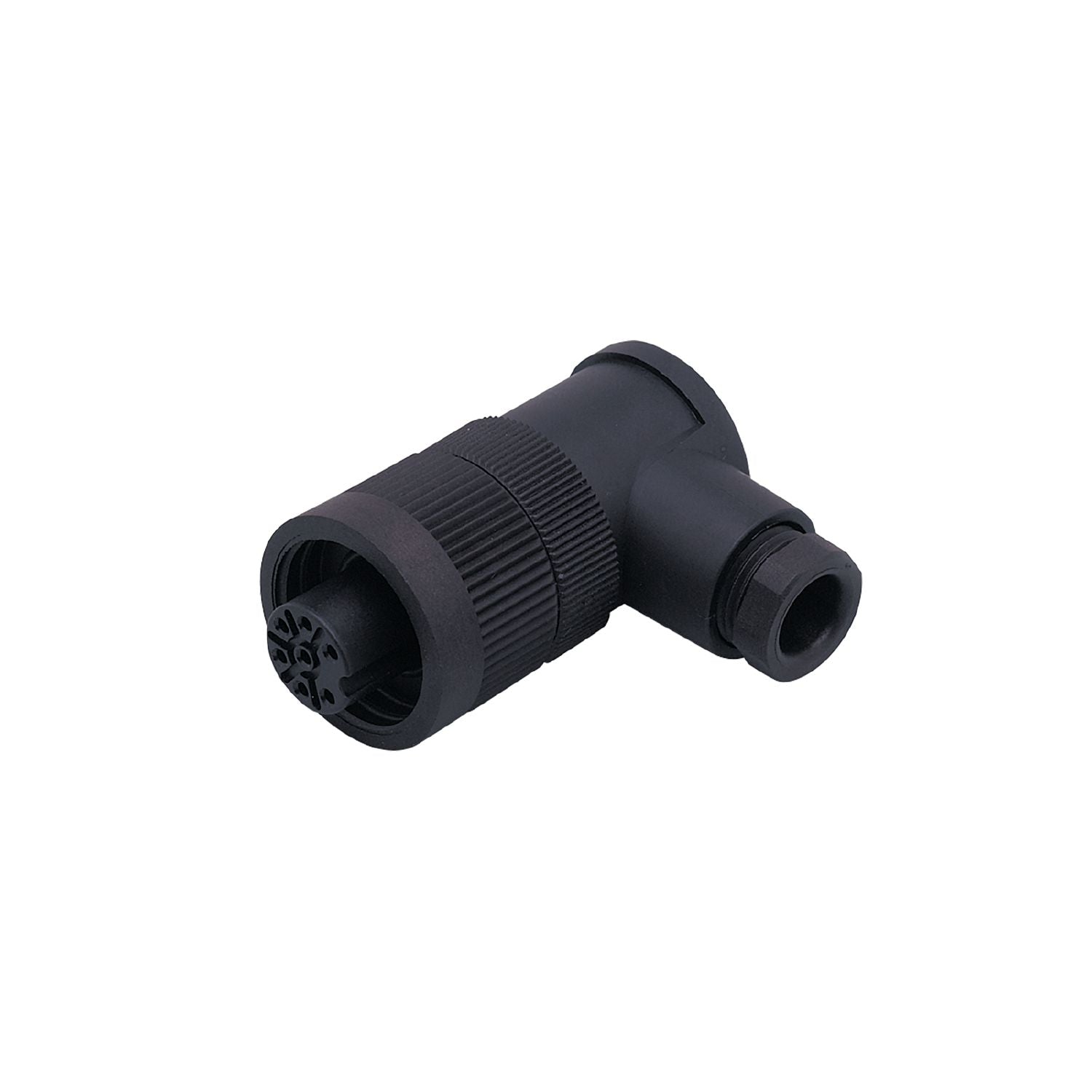

IFM E11043 - Wirable socket SDOAL070PLSFKPG

Angled type for use where space is restricted.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Safe cable connection with screw terminals

Special feature	Gold-plated contacts

Operating voltage [V]	< 250 AC / < 300 DC

Operating conditions

Ambient temperature [°C]	-40...100
Protection	IP 67

Weight [g]	43.7
Dimensions [mm]	59 x 29 x 38.5
Materials	PBT
Moulded-body material	PBT
Material nut	PA

Pack quantity	1 pcs.

Electrical connection

	terminals: ...2.5 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x Rd24, angled; coding: A; Moulded body: PBT; Locking: PA; Contacts: gold-plated
