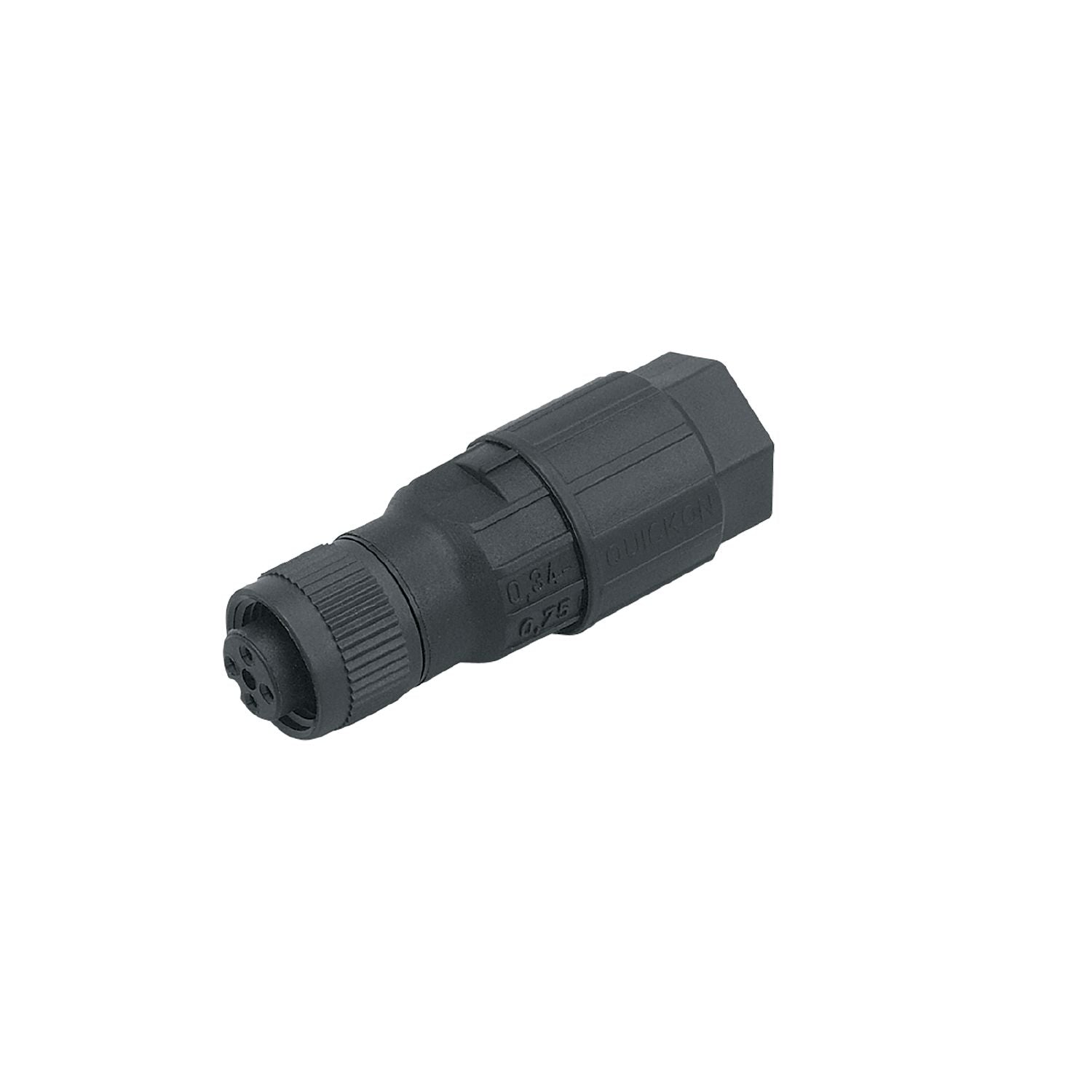

IFM E11145 - Wirable socket SDOGH040PLSFKSK

For safe electrical connections.
High protection rating for the requirements of harsh industrial environments.
Easy cable connection via insulation displacement technology

Operating voltage [V]	< 45 AC / < 70 DC
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Weight [g]	13.5
Dimensions [mm]	18 x 18 x 52
Materials	PA 6.6
Moulded-body material	PA 6.6
Material nut	PA 6.6

Pack quantity	1 pcs.

Electrical connection

	insulation displacement technology: 0.34...0.75 mm²; Core insulation: PVC / PE; (Ø ...2.5 mm); Cable sheath: Ø 4...7.5 mm

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6; Locking: PA 6.6

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11145-00 — 06.03.2003 —
