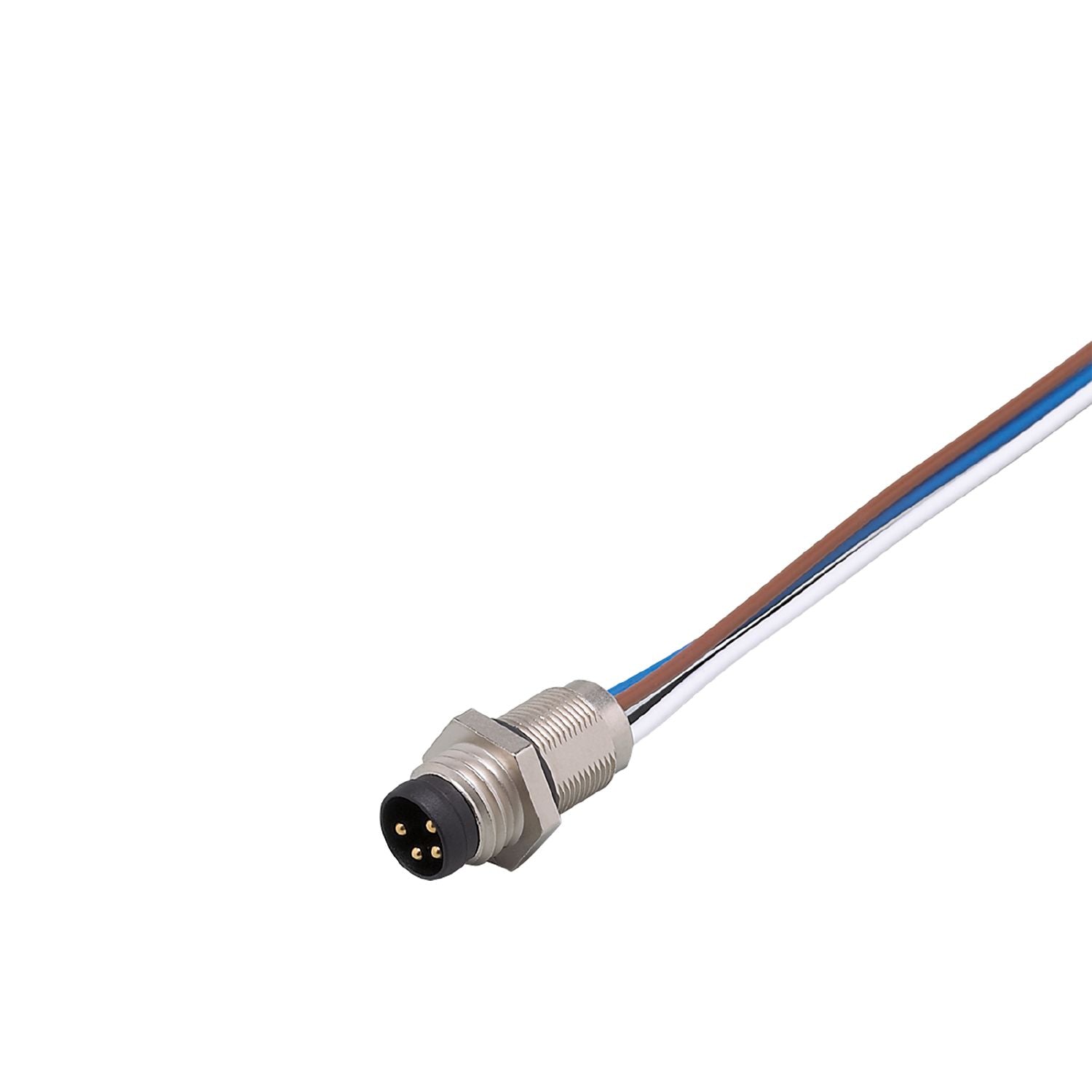

IFM E11190 - Adapter plug ESTGF040MSS00,5E04 (M8)

User-friendly equipment of distributors and housings with connections for connectors.
Easy and quick installation into the container wall.
Robust metal version.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 45 AC / < 70 DC
Protection class	III

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	11.6
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PVC; 4 x 0.25 mm²

Electrical connection - plug

Connection	Connector: 1 x M8, straight; coding: A; Moulded body: brass, nickel-plated
