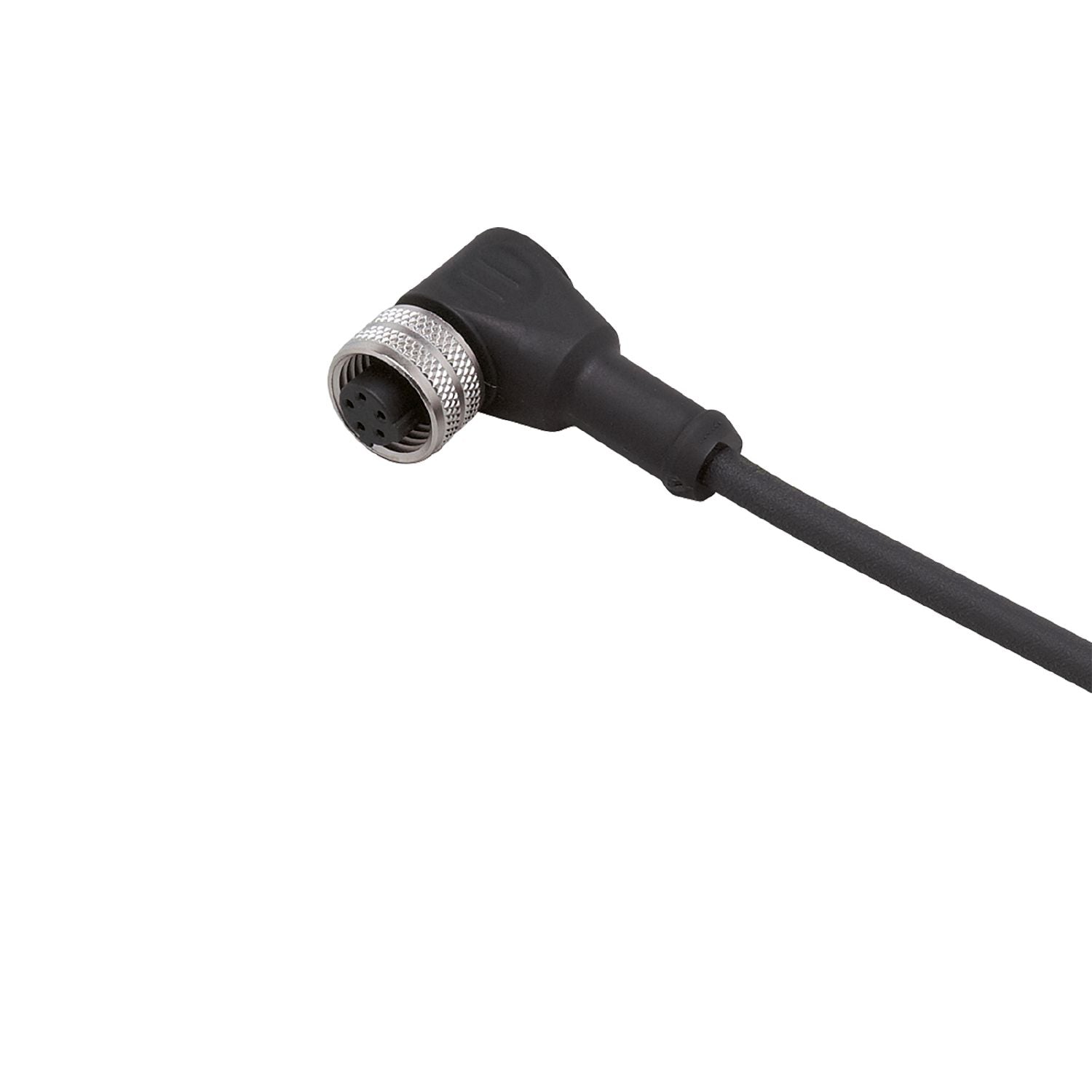

IFM E11248 - Connecting cable with socket ADOAA050MSS0005H04

Angled type for use where space is restricted.
Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Halogen-free

Operating voltage [V]	< 300 AC

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	165.2
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 4.7 mm; 4 x 0.34 mm² (43 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x 1/2", angled; coding: C; Moulded body: TPU; Locking: brass, nickel-plated
