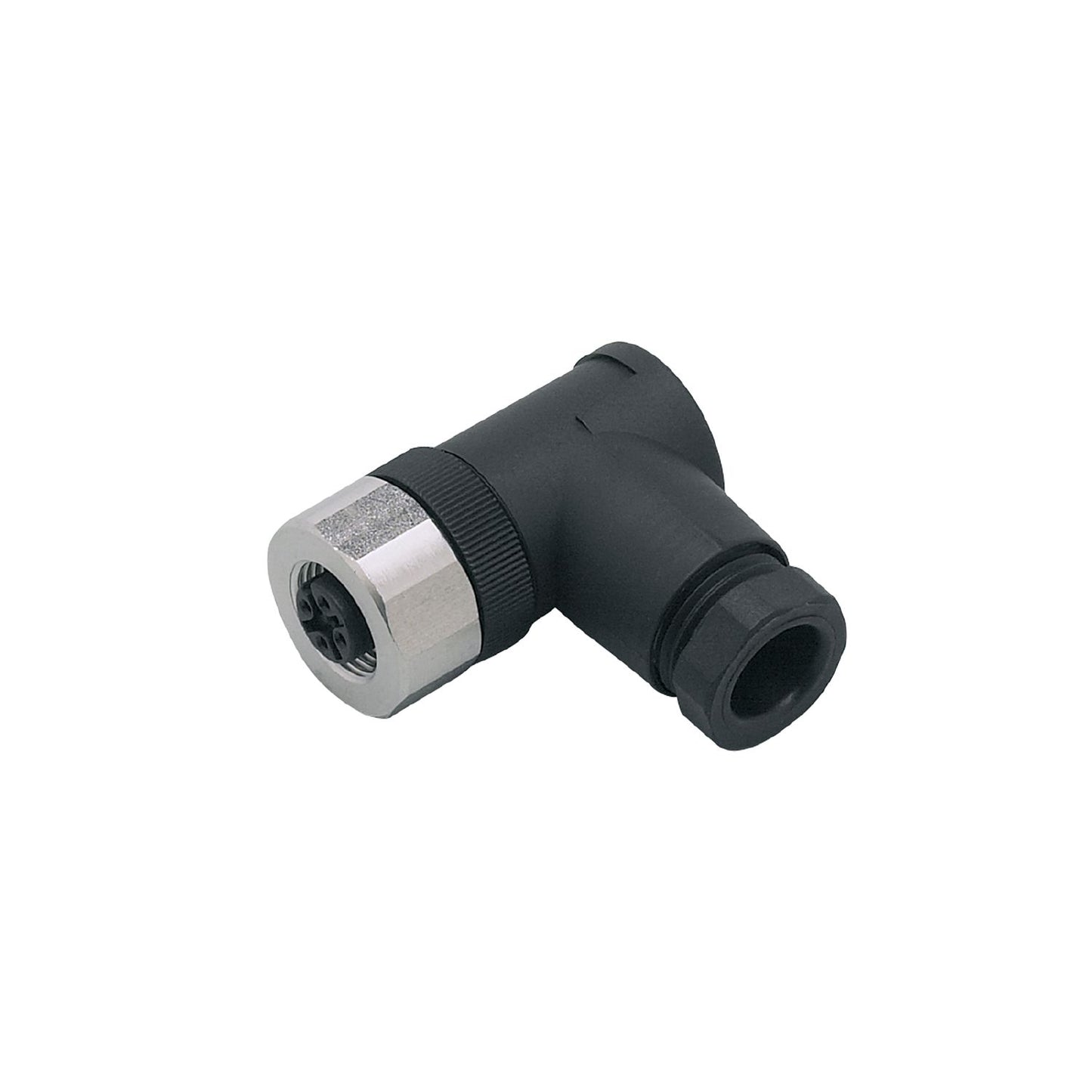

IFM E11252 - Wirable socket SDOAH040VASFKPG

Angled type for use where space is restricted.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Safe cable connection with screw terminals

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 45 AC / < 70 DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 68

Weight [g]	28.2
Dimensions [mm]	39 x 19 x 31
Materials	PBT
Moulded-body material	PBT
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: PBT; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11252-01 — 02.11.2017 —
