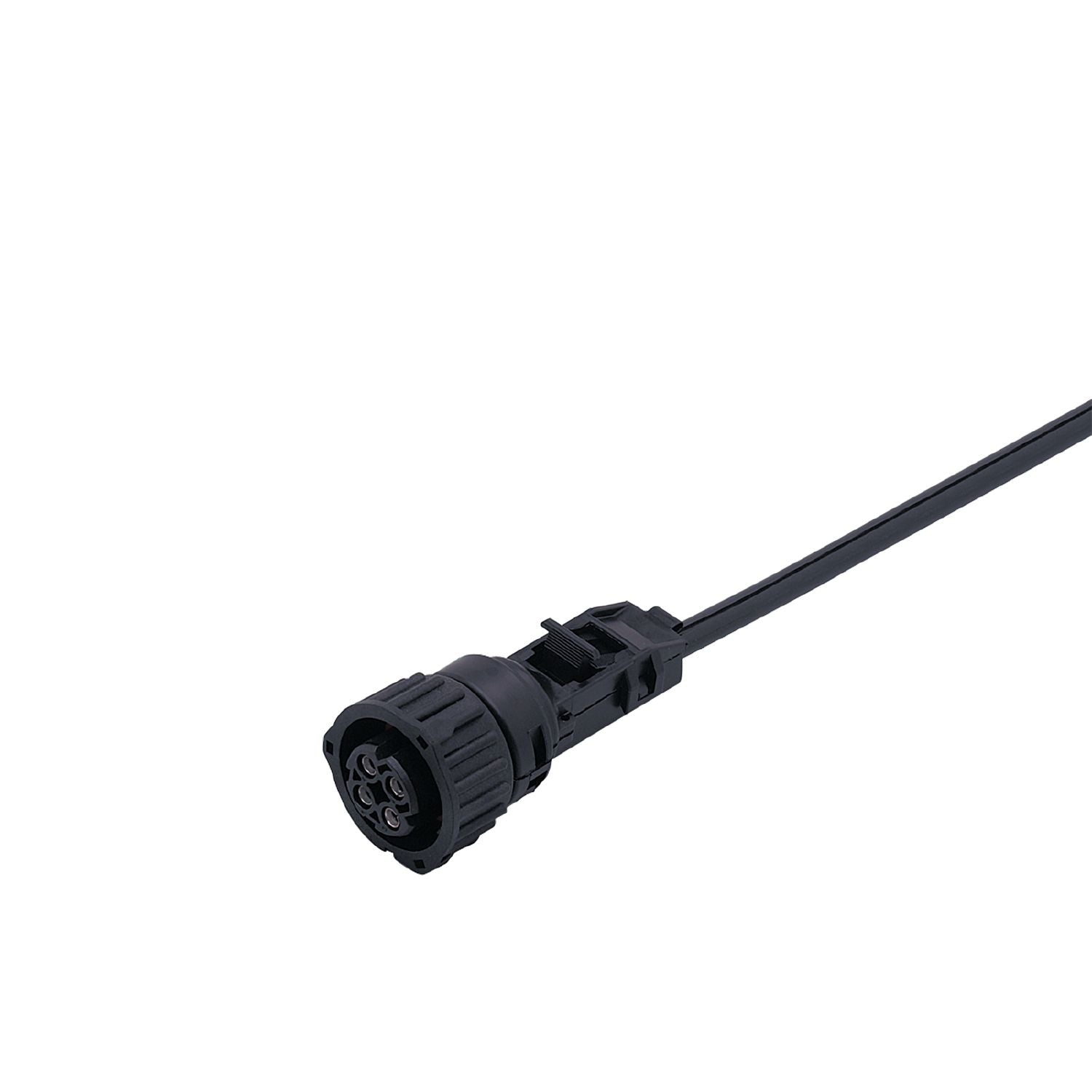

IFM E11273 - Connecting cable with socket ADOGR040PLS0002H

Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Halogen-free

Operating voltage [V]	9.6...30 DC

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67; IP 69K

Weight [g]	106.5
Dimensions [mm]	30 x 30 x 68
Materials	Hytrel G-4774
Moulded-body material	Hytrel G-4774
Material nut	Hytrel G-4774

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, black; 4 x 0.5 mm²

Electrical connection - socket

Connection	Connector: 1 x bayonet, straight; Moulded body: Hytrel G-4774; Locking: Hytrel G-4774

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11273-00 — 05.11.2020 —
