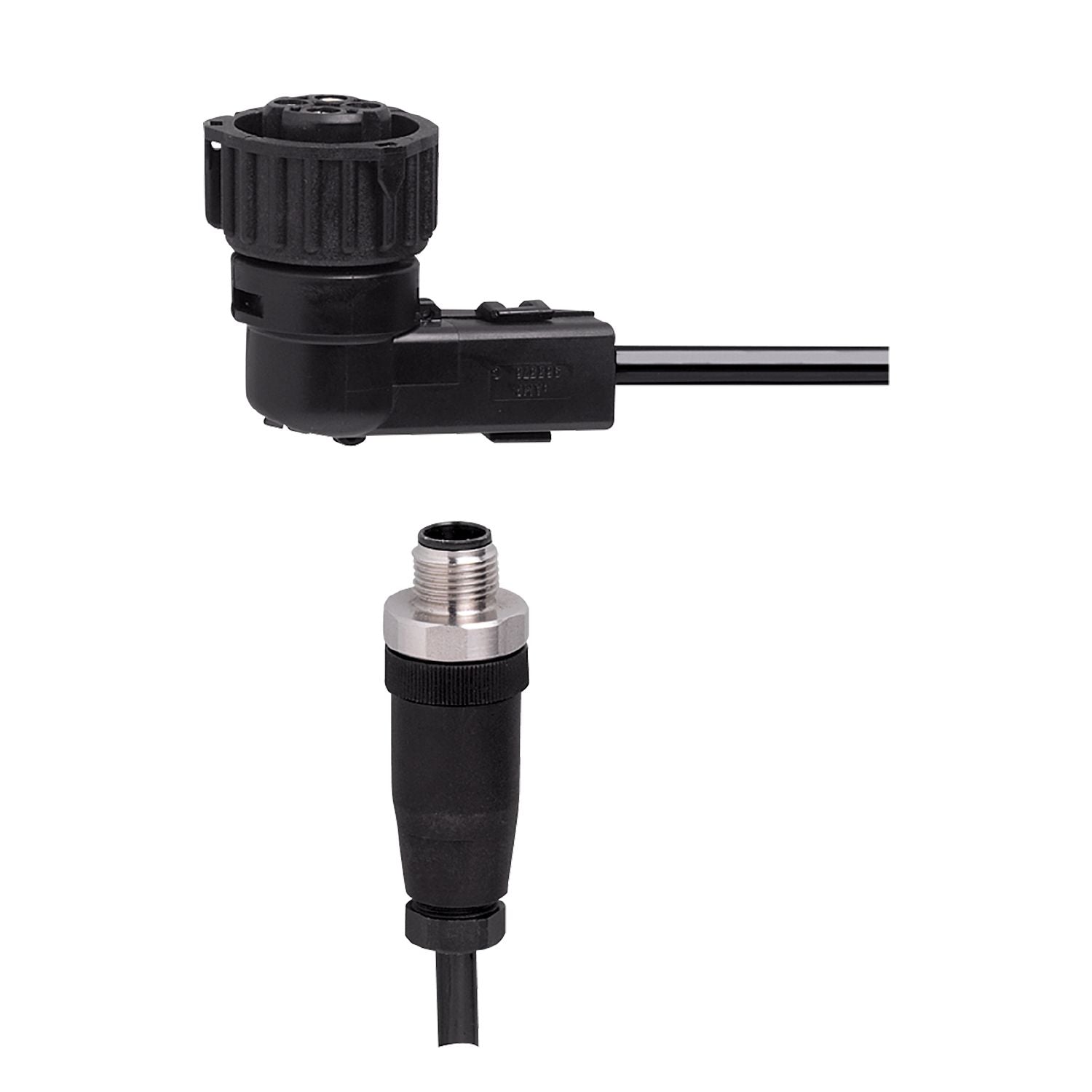

IFM E11274 - Connection cable VDOAR040PLS0002HSTGH040VAS

For the connection of sensors with bayonet connector.
For communication with programming devices.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Halogen-free
Design	for communication with the programming unit PP2000

Operating voltage [V]	9.6...30 DC

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 67;(Connecting cable with socket: IP 67 / IP 69K)

Weight [g]	131
Moulded-body material	PA / Hytrel G-4774

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, black, Ø 6 mm; 4 x 0.5 mm²

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA

Electrical connection - socket

	Connector: 1 x bayonet, angled; Moulded body: Hytrel G-4774
