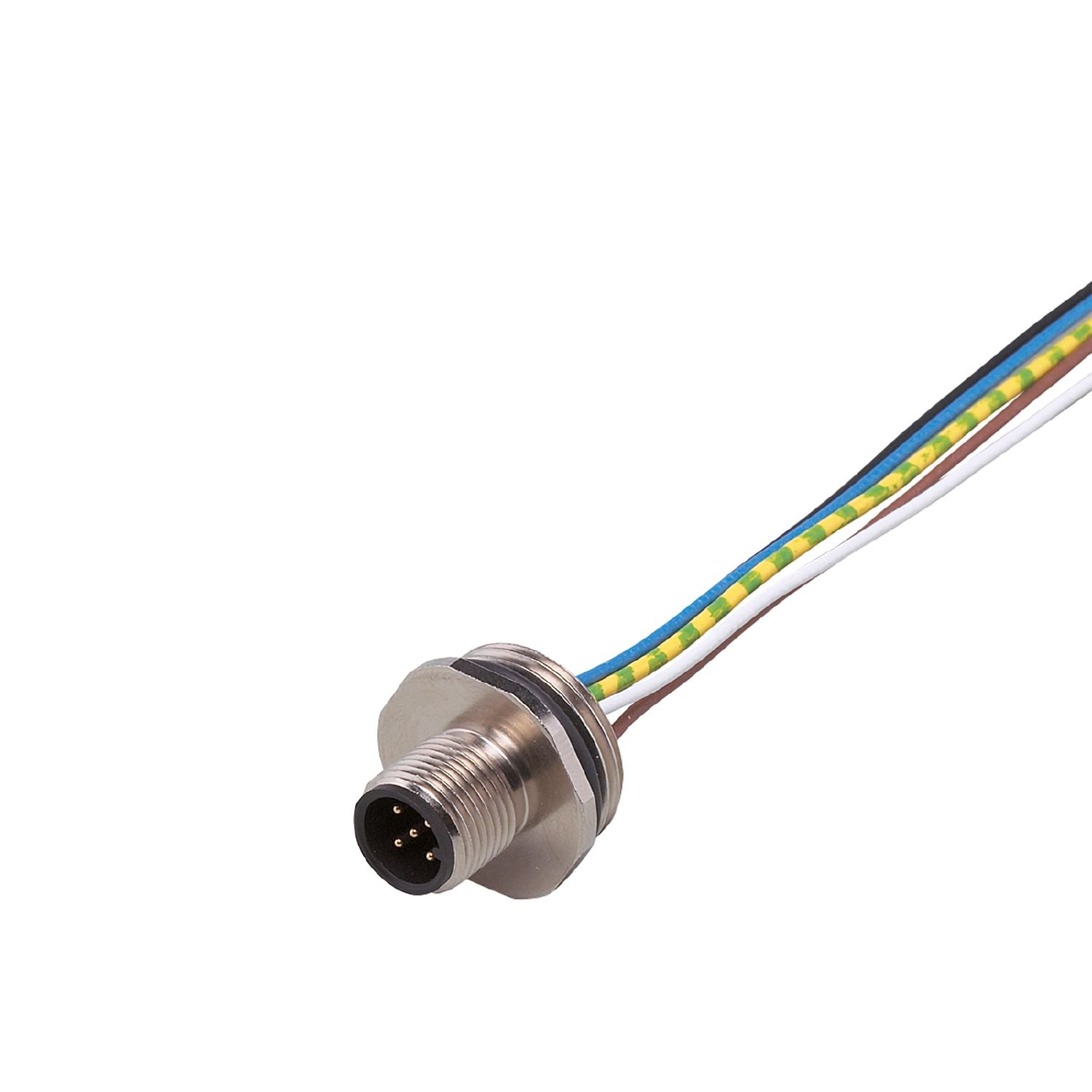

IFM E11315 - Adapter plug ESTGH050MSS00,5E05 (M20)

User-friendly equipment of distributors and housings with connections for connectors.
Easy and quick installation into the container wall.
Robust metal version.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 125 AC/DC

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	27.3
Dimensions [mm]	18 x 18 x 19
Mounting thread	M20
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PVC; 4 x 0.25 mm² + 1 x 0.5 mm²

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: brass, nickel-plated; Tightening torque: ...0.6 Nm; thread M20 Tightening torque: ...2 Nm
