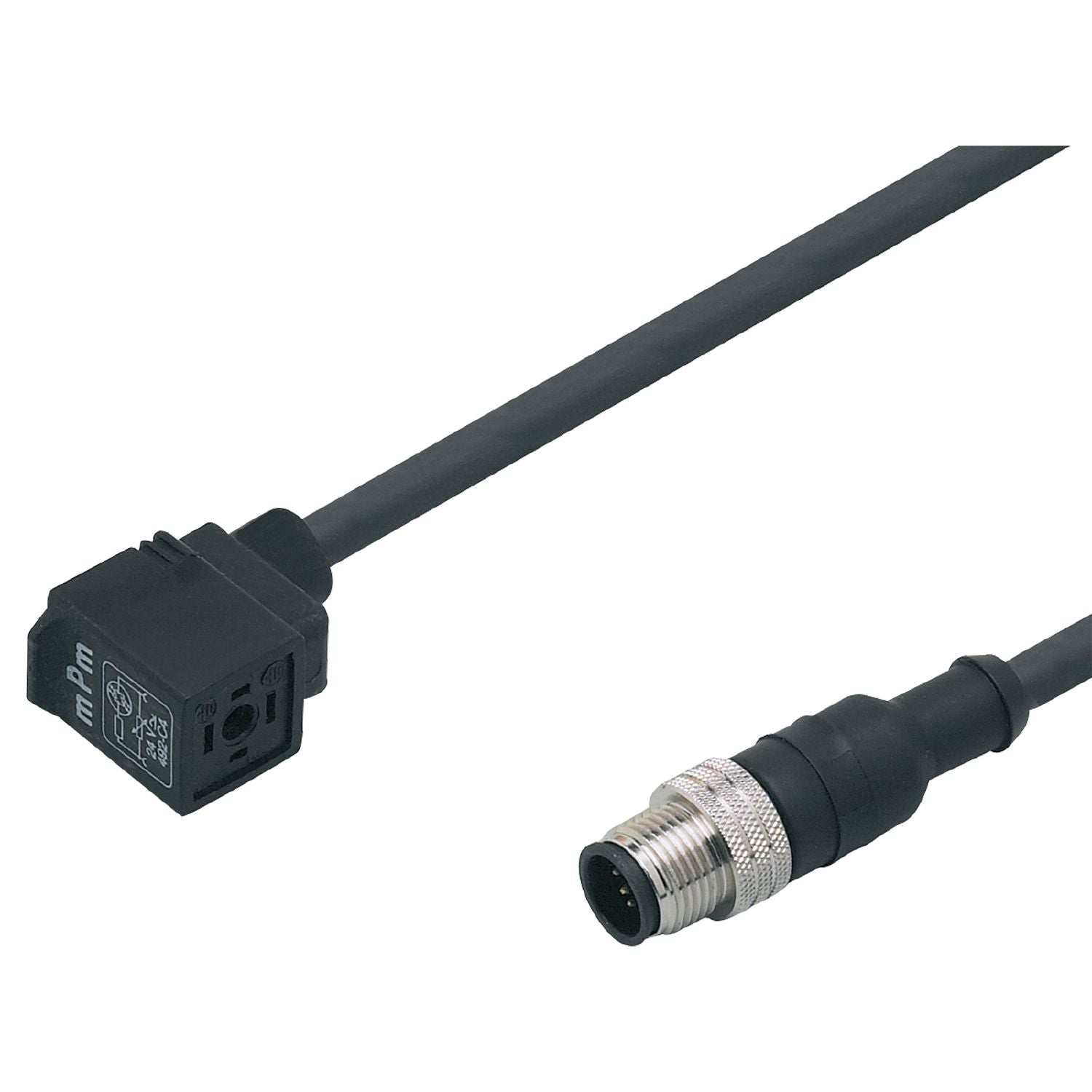

IFM E11426 - Jumper cable with valve plug VVDAC031MSS00,3H03STGH030MSS

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Clearly visible LED.
With integrated protective circuitry

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 24 AC/DC
Overvoltage protection	yes;(VDR)
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Weight [g]	45.5
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Displays / operating elements

Display	operation 1 x LED, yellow

Accessories

Items supplied	screw panel for labelling

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm

Electrical connection

Connection	Cable: 0.3 m, PUR, Halogen-free, black, Ø 5 mm; 3 x 0.5 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x valve type C DIN, angled; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: nickel-plated brass; Tightening torque: 0.7...0.9 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11426-00 — 06.03.2003 —
