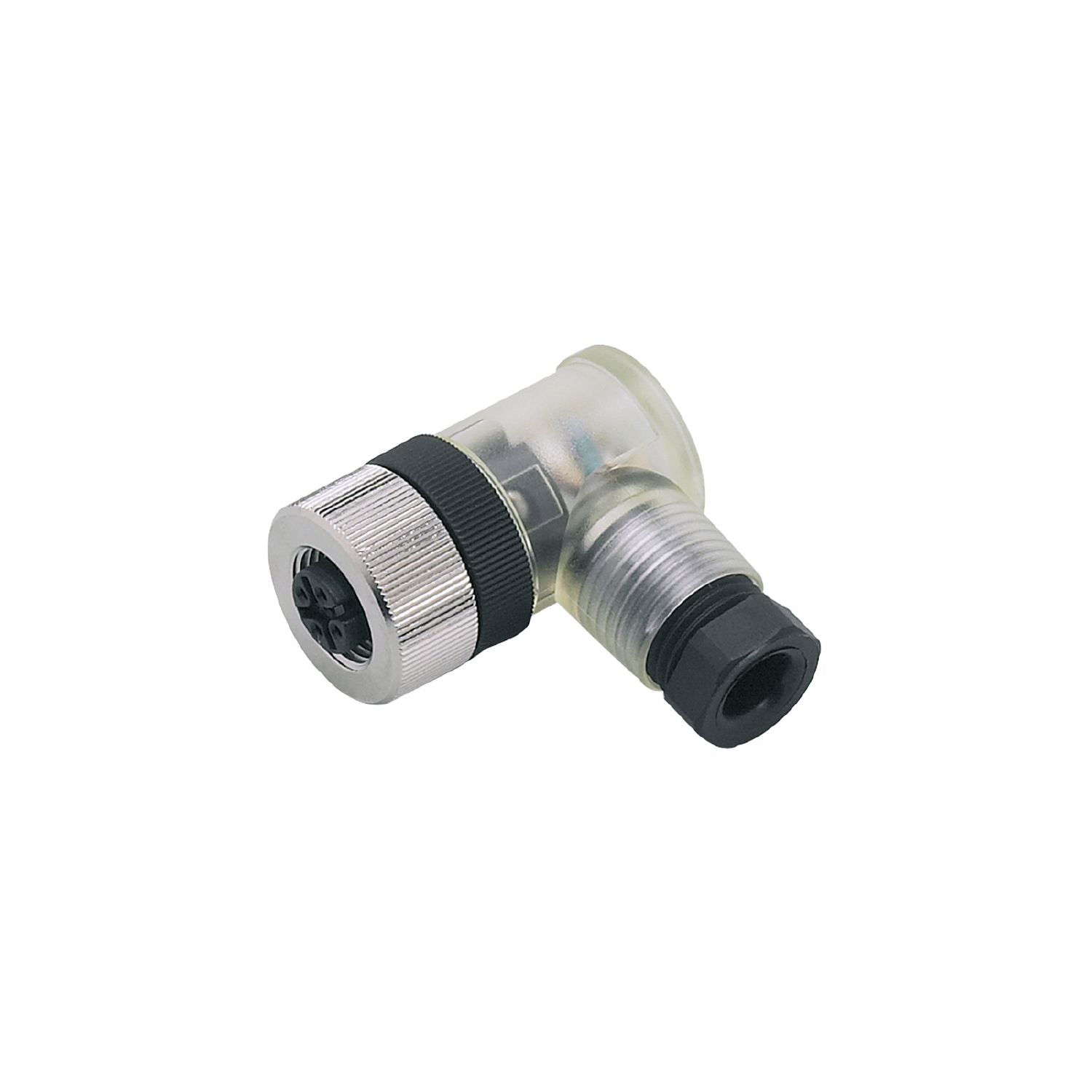

IFM E11510 - Wirable socket SDOAH042MSSFKPG

Angled type for use where space is restricted.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Clearly visible LEDs for indicating operation and switching status

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	10...30 DC
Max. current load total [A]	4;(...40 °C)

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	28.6
Dimensions [mm]	30 x 18 x 35
Materials	PA
Moulded-body material	PA
Material nut	brass, nickel-plated

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 4...6 mm

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11510-00 — 06.03.2003 —
