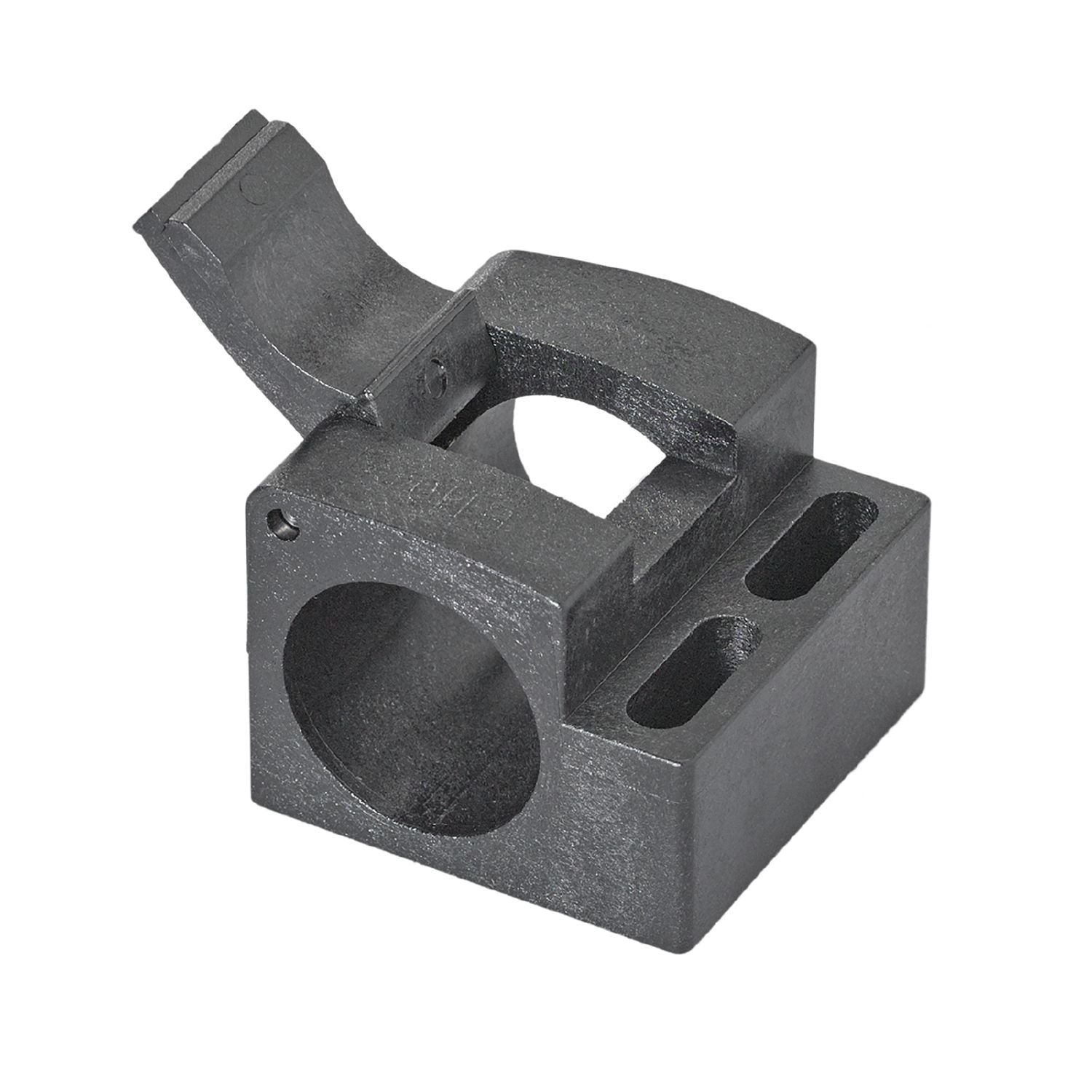

IFM E11521 - Mounting clamp for position sensors MOUNTING CLAMP M8

End stop for defined installation position.
Safe fixing of the sensor with click-fit mounting.
For mounting cylindrical sensors.
Easy, quick and inexpensive fixing.
Reliable mounting on a surface by means of two screws

Design	with end stop

Operating conditions

Ambient temperature [°C]	-25...85

Weight [g]	4.3
Dimensions [mm]	15 x 20 x 22
Inside diameter [mm]	8
Materials	PC

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11521-00 — 06.03.2003 —
