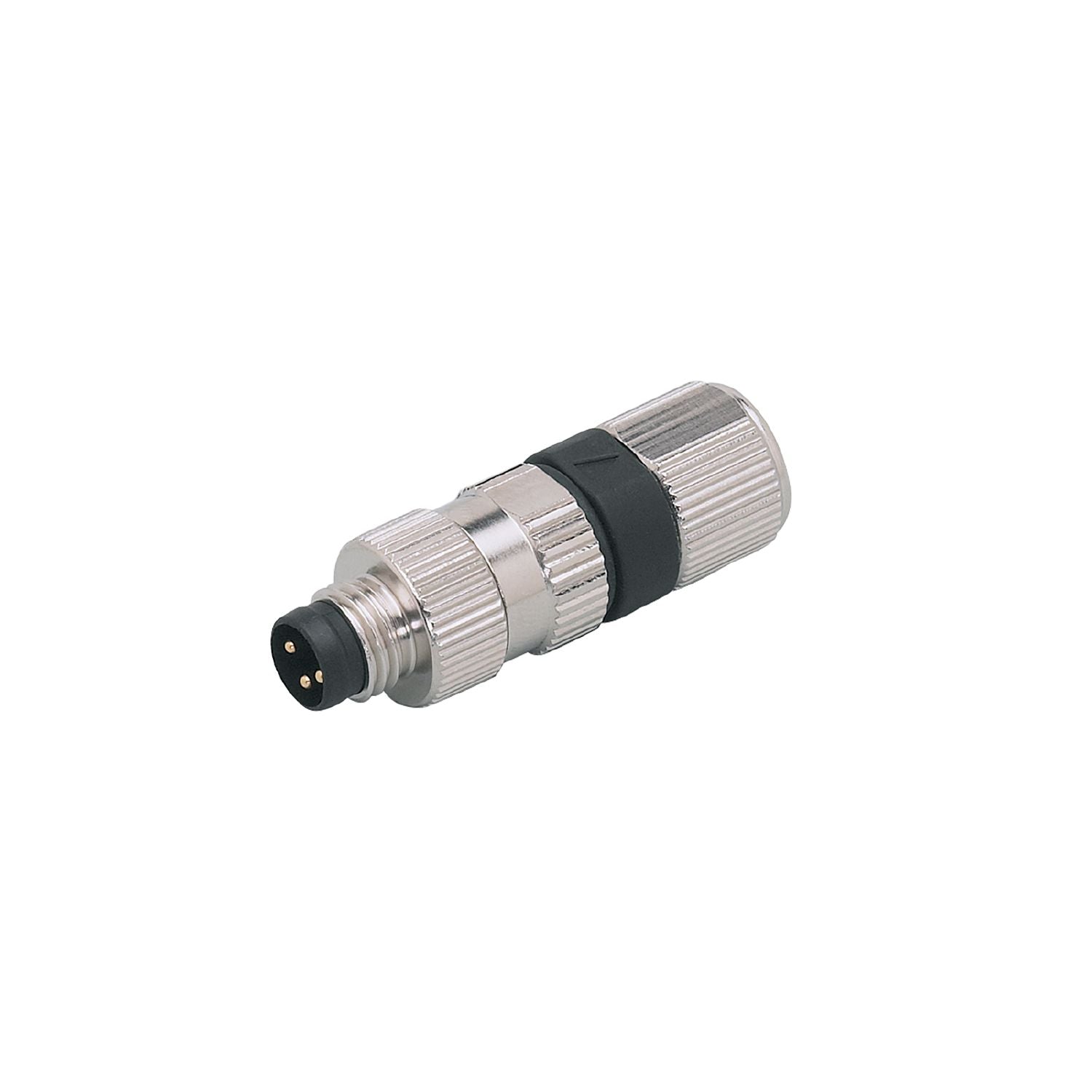

IFM E11550 - Wirable plug SSTGF030MSSFPKG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Easy cable connection via insulation displacement technology.
Robust metal version

Special feature	Gold-plated contacts

Operating voltage [V]	< 50 AC / < 75 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 68

Weight [g]	14.8
Materials	PA
Moulded-body material	PA
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	insulation displacement technology: 0.14...0.38 mm²; Core insulation: PVC / TPE; (Ø 1.0...1.6 mm); Cable sheath: Ø 3...5 mm

Electrical connection - plug

Connection	Connector: 1 x M8, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11550-00 — 22.12.2015 —
