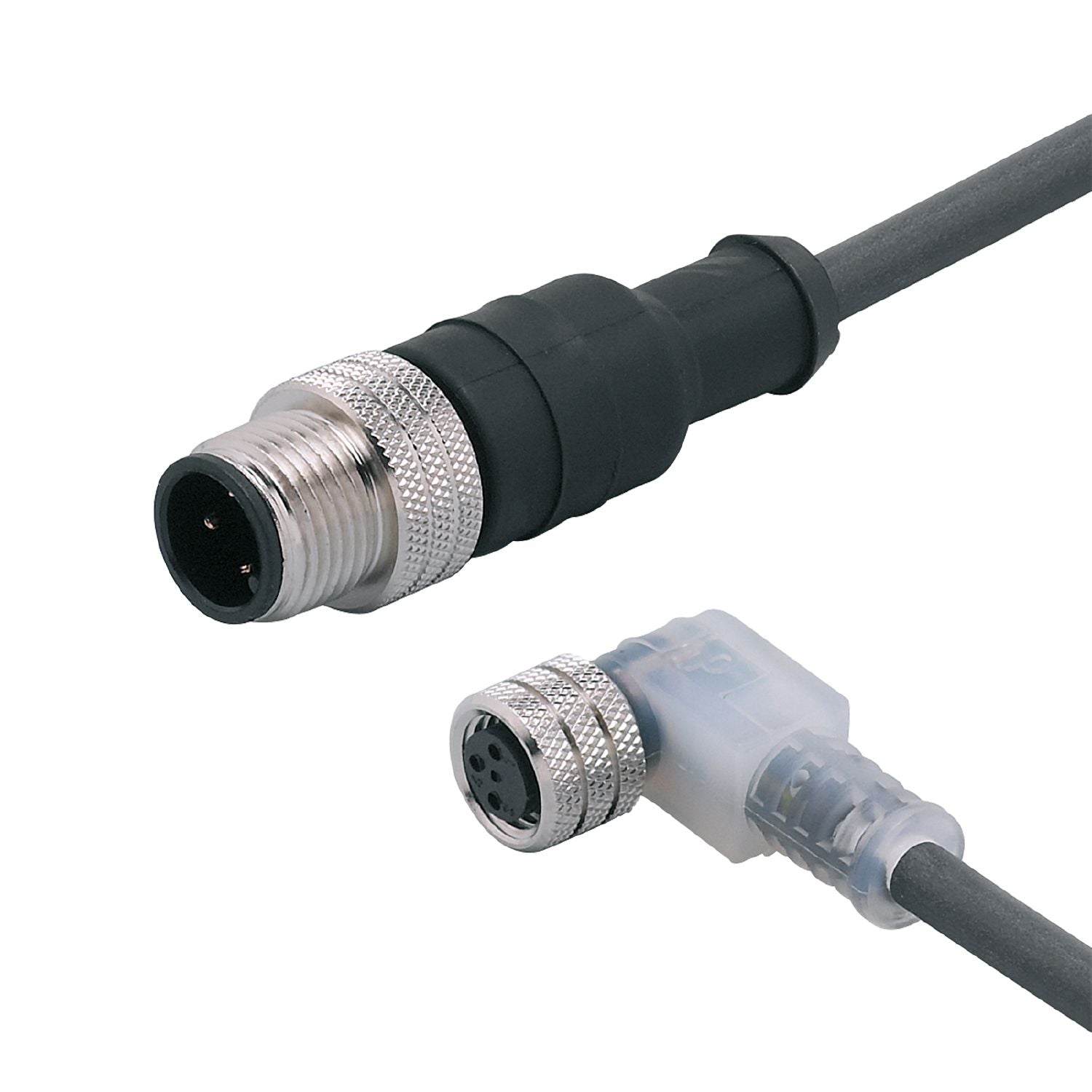

IFM E11564 - Connection cable VDOAF032MSS01,5H03STGH030MSS

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	10...30 DC
Protection class	III
Max. current load total [A]	3

Outputs

Electrical design	PNP

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	56.2
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm

Electrical connection

Connection	Cable: 1.5 m, PUR, Halogen-free, black, Ø 5 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )
