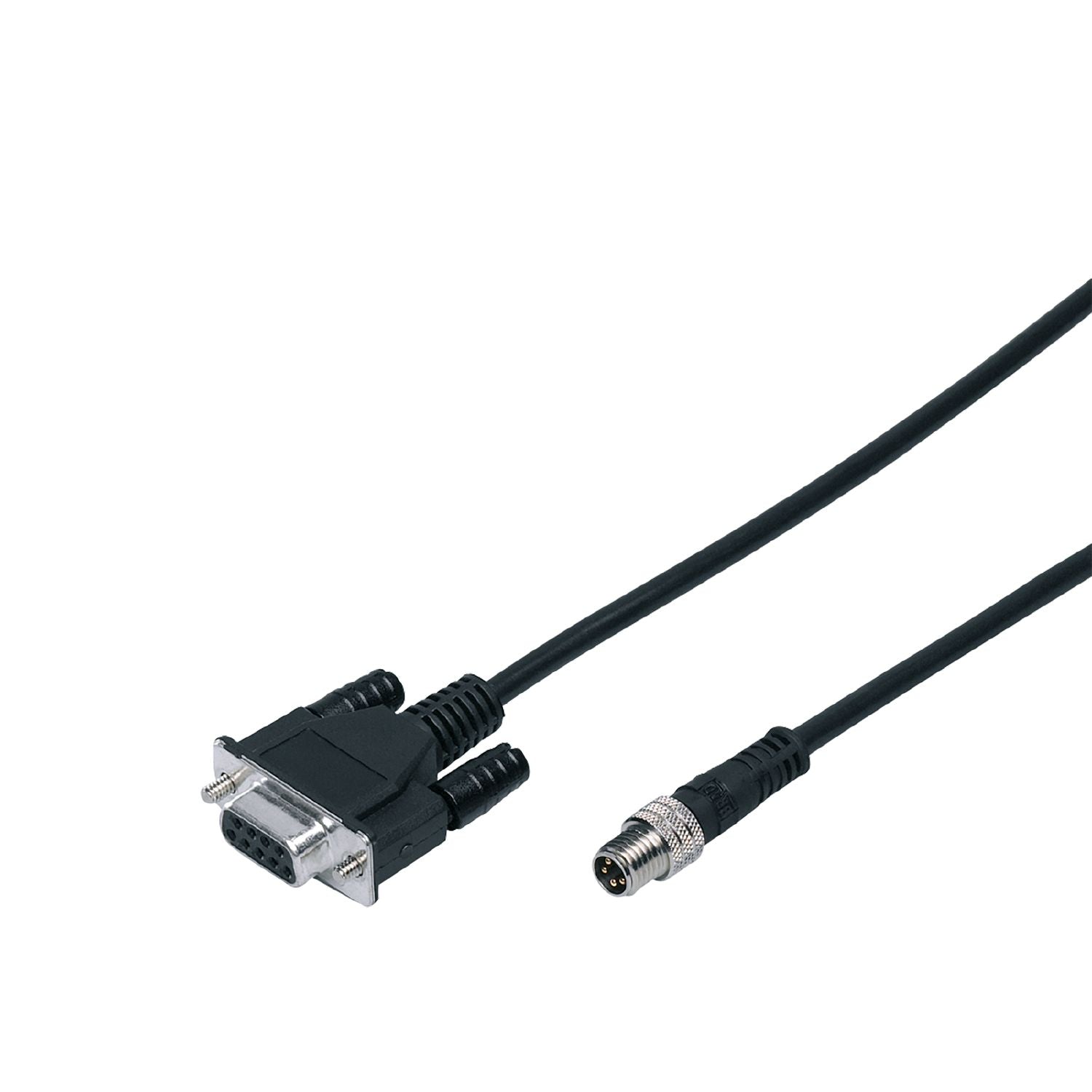

IFM E11572 - Connection cable VDOGQ090PLS0003E03STGF040MSS

For the parameterisation of vibration sensors.
For a reliable data and signal transmission.
Connection to a PC via Sub-D socket

Operating voltage [V]	< 60 AC / < 75 DC
Protection class	III

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 50

Weight [g]	113.9
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 3 m, PVC, black, Ø 5 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - plug

Connection	Connector: 1 x M8, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated

Electrical connection - socket

	Connector: 1 x Sub D, straight; Moulded body: PUR; Locking: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11572-00 — 01.09.2008 —
