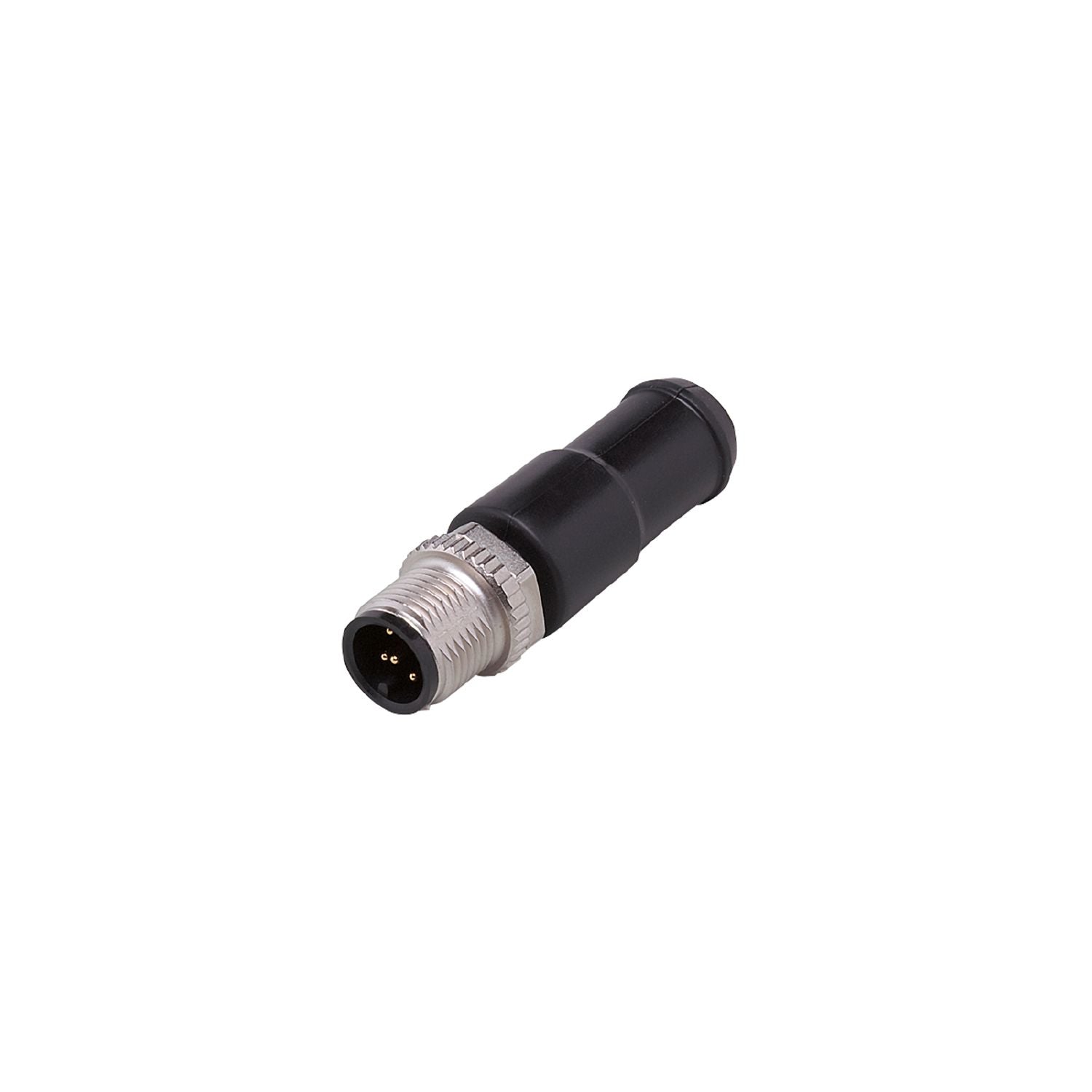

IFM E11590 - Plug with CAN bus terminating resistor SSTGH050ZDAFKPG

Reliable connection technology for CAN bus participants.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections

Special feature	Gold-plated contacts
Application	CAN bus

Operating conditions

Ambient temperature [°C]	-40...85
Protection	IP 68

Weight [g]	8.39
Dimensions [mm]	14.5 x 14.5 x 48.5
Materials	TPU
Moulded-body material	TPU
Material nut	diecast zinc, nickel-plated

Remarks	The CAN bus terminating resistor (120 Ω) is integrated in the M12 connector.
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Tightening torque: ...0.6 Nm
