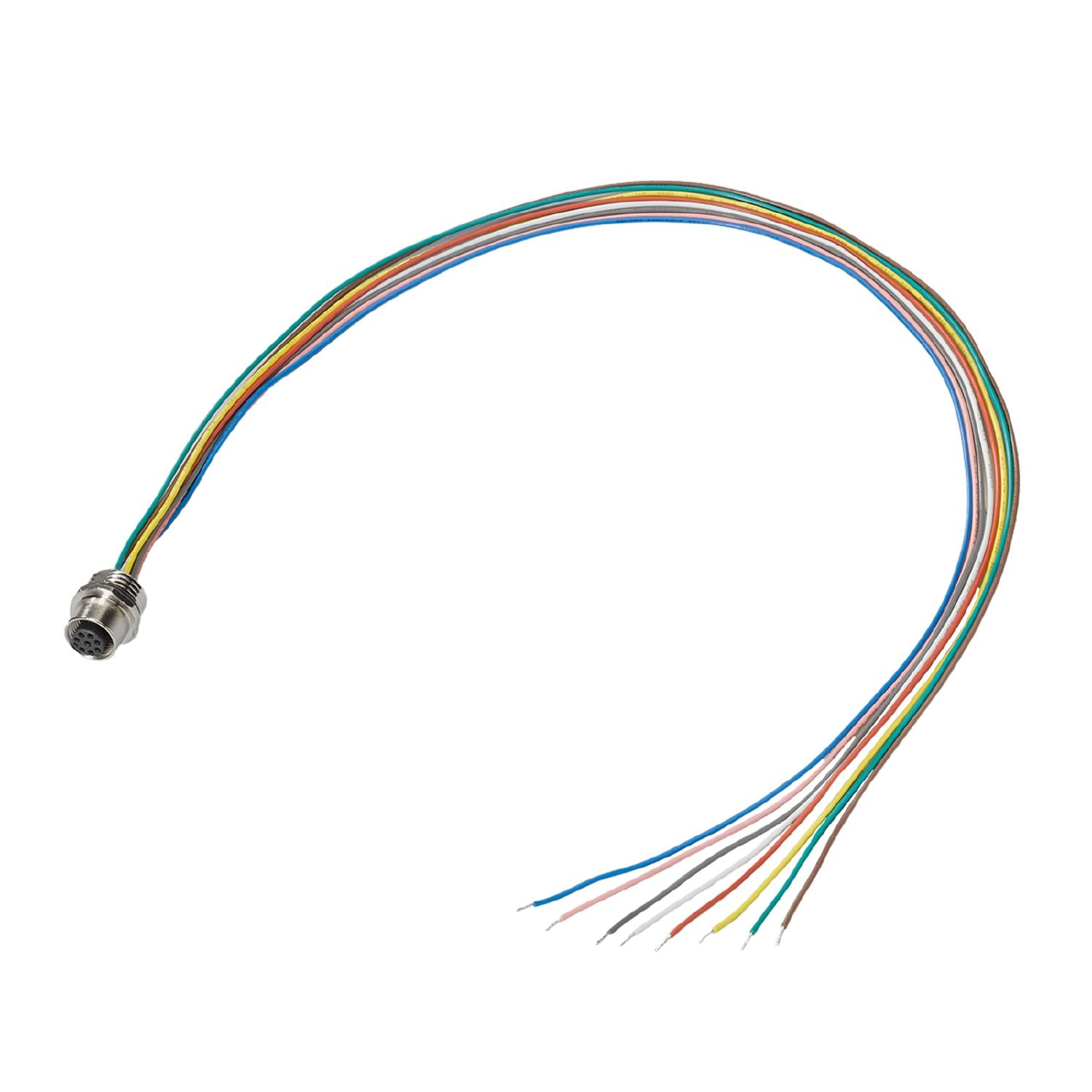

IFM E11601 - Adapter socket EDOGH080MSS00,5E08 (PG9)

User-friendly equipment of distributors and housings with connections for connectors.
Robust metal version.
Easy and quick installation into the container wall.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Operating voltage [V]	< 30 AC / < 36 DC

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	33
Mounting thread	PG 9
Materials	brass nickel-plated
Moulded-body material	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, PVC; 8 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: brass, nickel-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11601-00 — 06.03.2003 —
