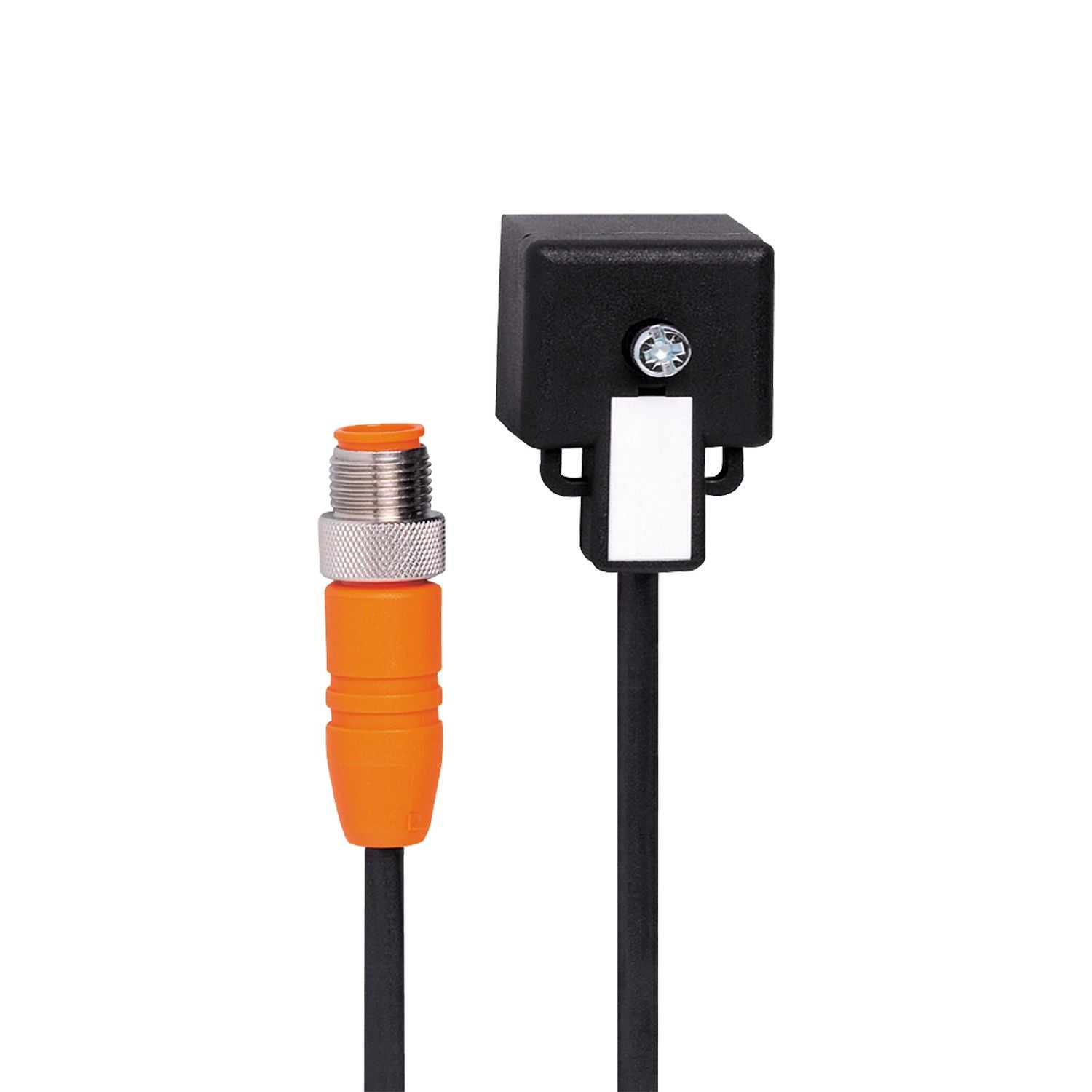

IFM E11622 - Jumper cable with valve plug VVDAA040MSS0002H03STGH020MSS

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Robust rectangular connectors

Application	current measurement

Operating voltage [V]	< 24 AC/DC

Operating conditions

Ambient temperature [°C]	-40...90
Protection	IP 67; IP 69K

Weight [g]	152.5
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated

Accessories

Items supplied	screw panel for labelling

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm

Electrical connection

Connection	Cable: 2 m, PUR; 2 x 0.75 mm²

Electrical connection - socket

	Connector: 1 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11622-00 — 06.01.2010 —
