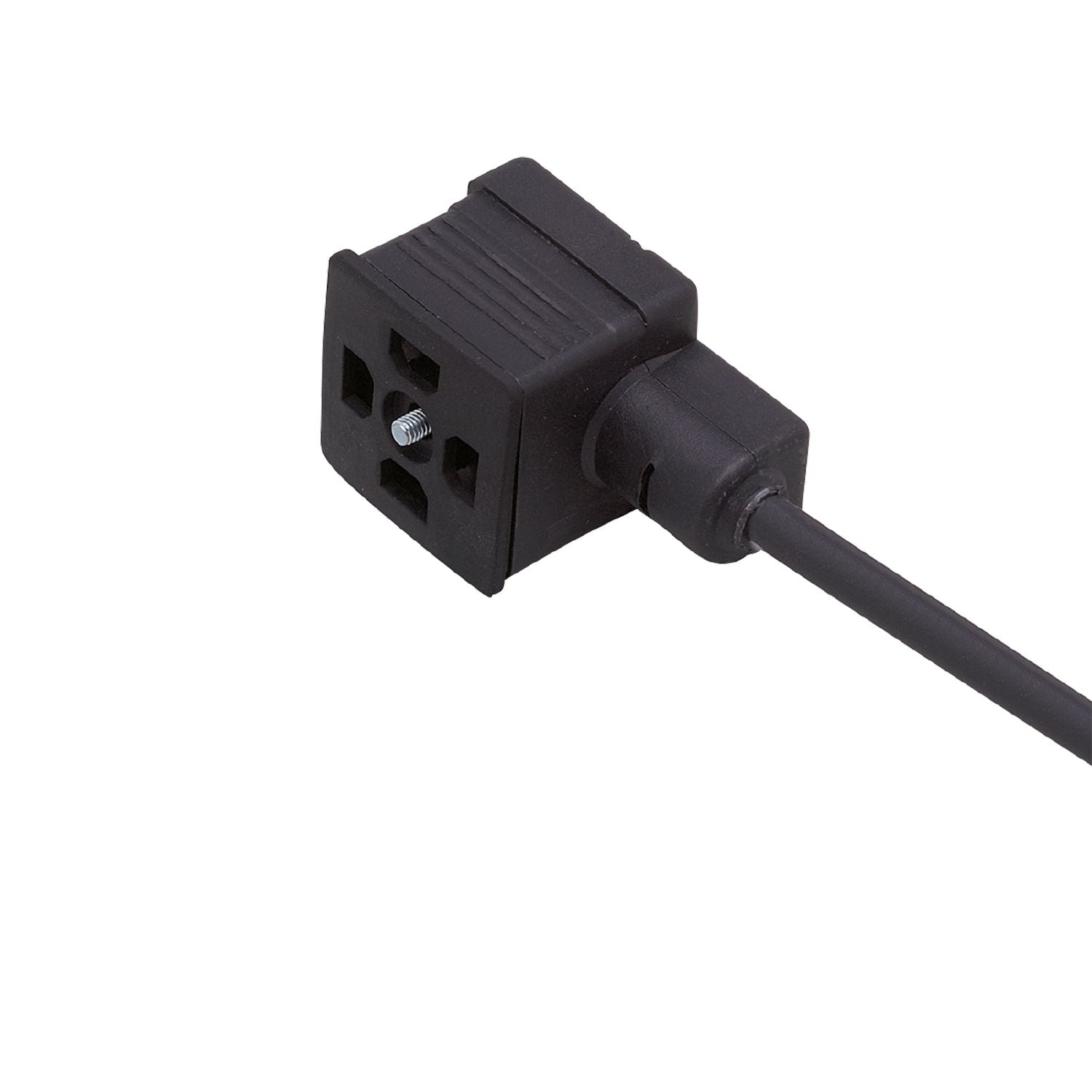

IFM E11651 - Jumper cable with valve plug AVDAA031PLS0005H03

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Clearly visible LED.
Robust rectangular connector

Special feature	Free from silicone
Free from silicone	yes

Operating voltage [V]	< 24 AC/DC
Overvoltage protection	yes;(VDR)
Max. current load total [A]	5

Operating conditions

Ambient temperature [°C]	-20...80
Protection	IP 67

Weight [g]	256.3
Dimensions [mm]	28.5 x 29.5 x 47
Materials	PP; FKM
Moulded-body material	PP / FPM

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Ø 6.6 mm; 3 x 0.5 mm² / AWG 20

Electrical connection - socket

Connection	Connector: 1 x valve type A DIN, angled; Moulded body: PP / FPM

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11651-00 — 12.09.2003 —
