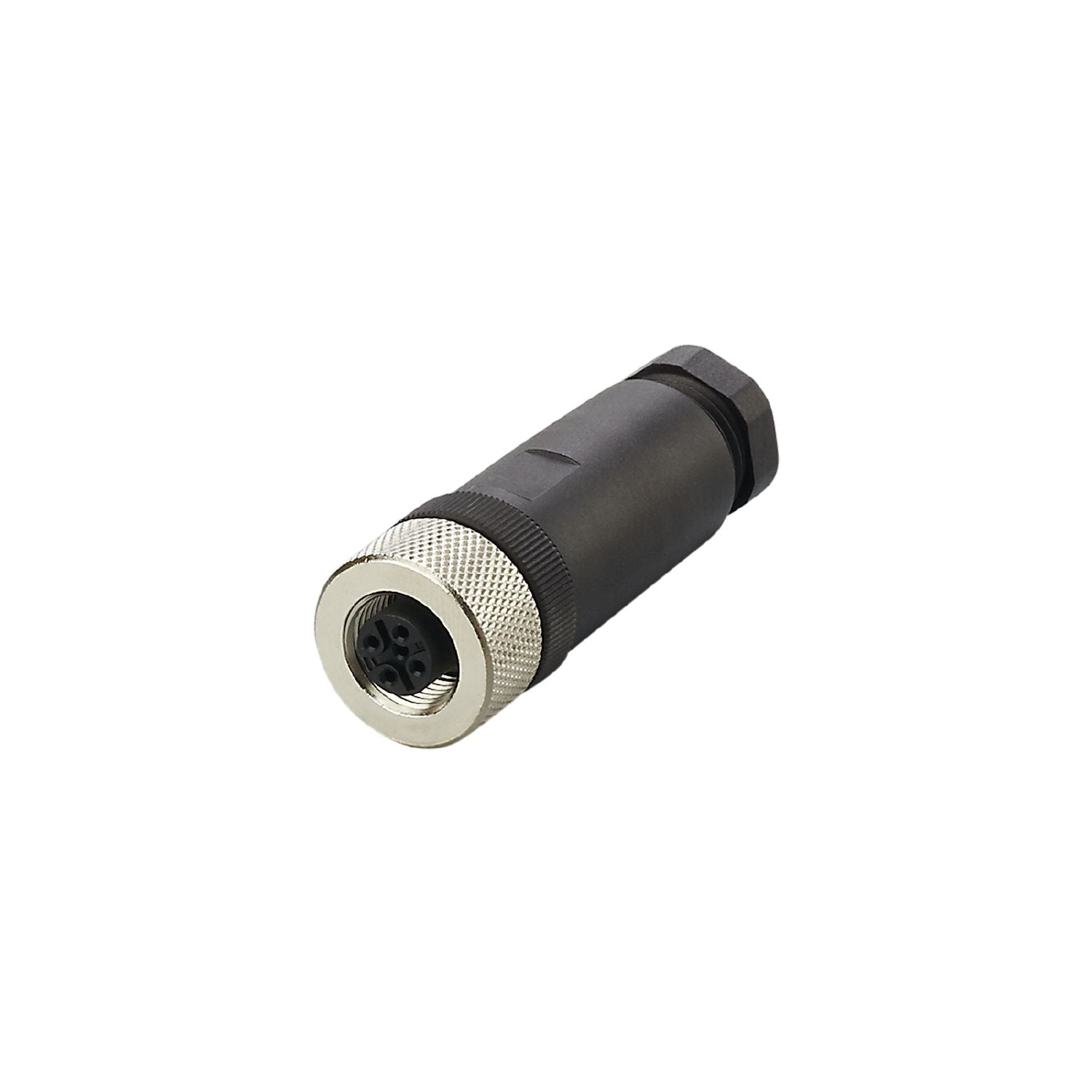

IFM E11657 - Wirable socket SDOGH040MSSFKPG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 45 AC / < 70 DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...100
Protection	IP 68

Weight [g]	28.8
Dimensions [mm]	18 x 18 x 46
Materials	PA
Moulded-body material	PA
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11657-00 — 06.03.2003 —
