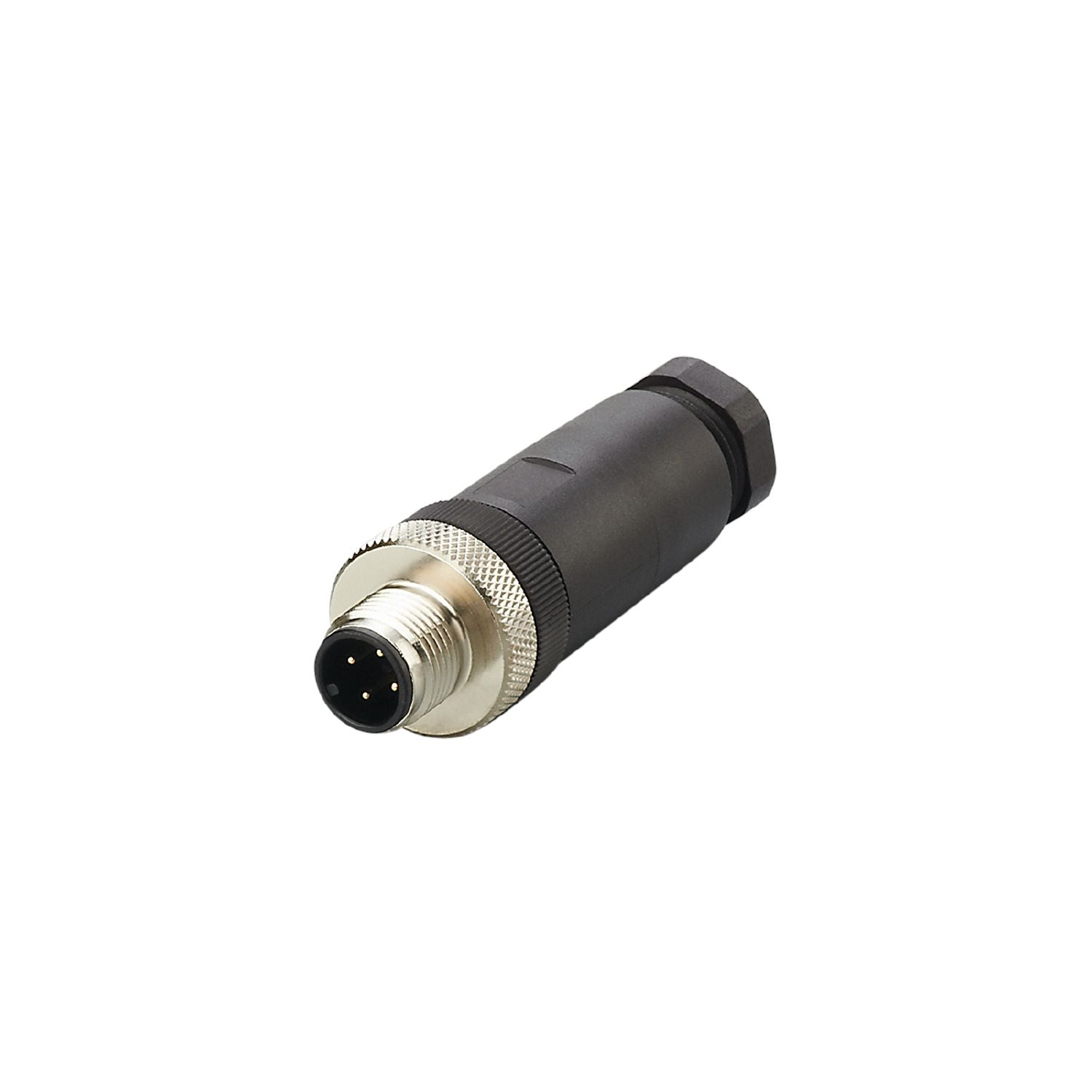

IFM E11770 - Wirable plug SSTGH050MSSFKPG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 125 AC/DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...100
Protection	IP 68

Weight [g]	26.5
Dimensions [mm]	20 x 20 x 52
Materials	PA
Moulded-body material	PA
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated
