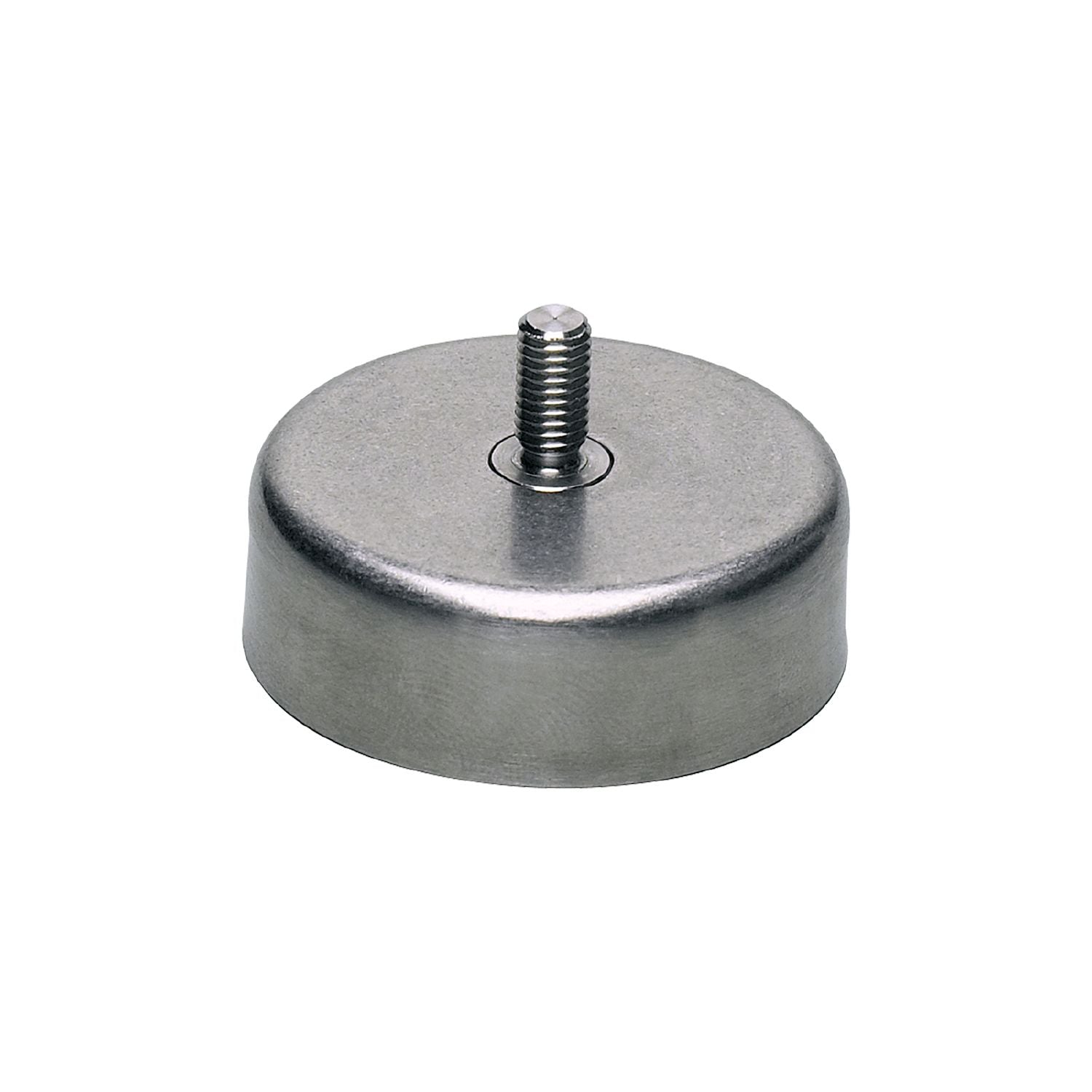

IFM E11803 - Damping magnet MAGNET M4.1/HARD F.STAINLESS

For ensuring a long sensing range.
For use in combination with magnetic sensors.
Hidden installation behind aluminium or stainless steel is possible.
Wide operating temperature range
Operating conditions

Ambient temperature [°C]	-25...250

Weight [g]	79.8
Dimensions [mm]	Ø 40 / L = 13
Materials	hard ferrite HF 24/23; stainless steel (1.4571/316Ti )
Magnetic field strength [mT]	80

Pack quantity	1 pcs.
