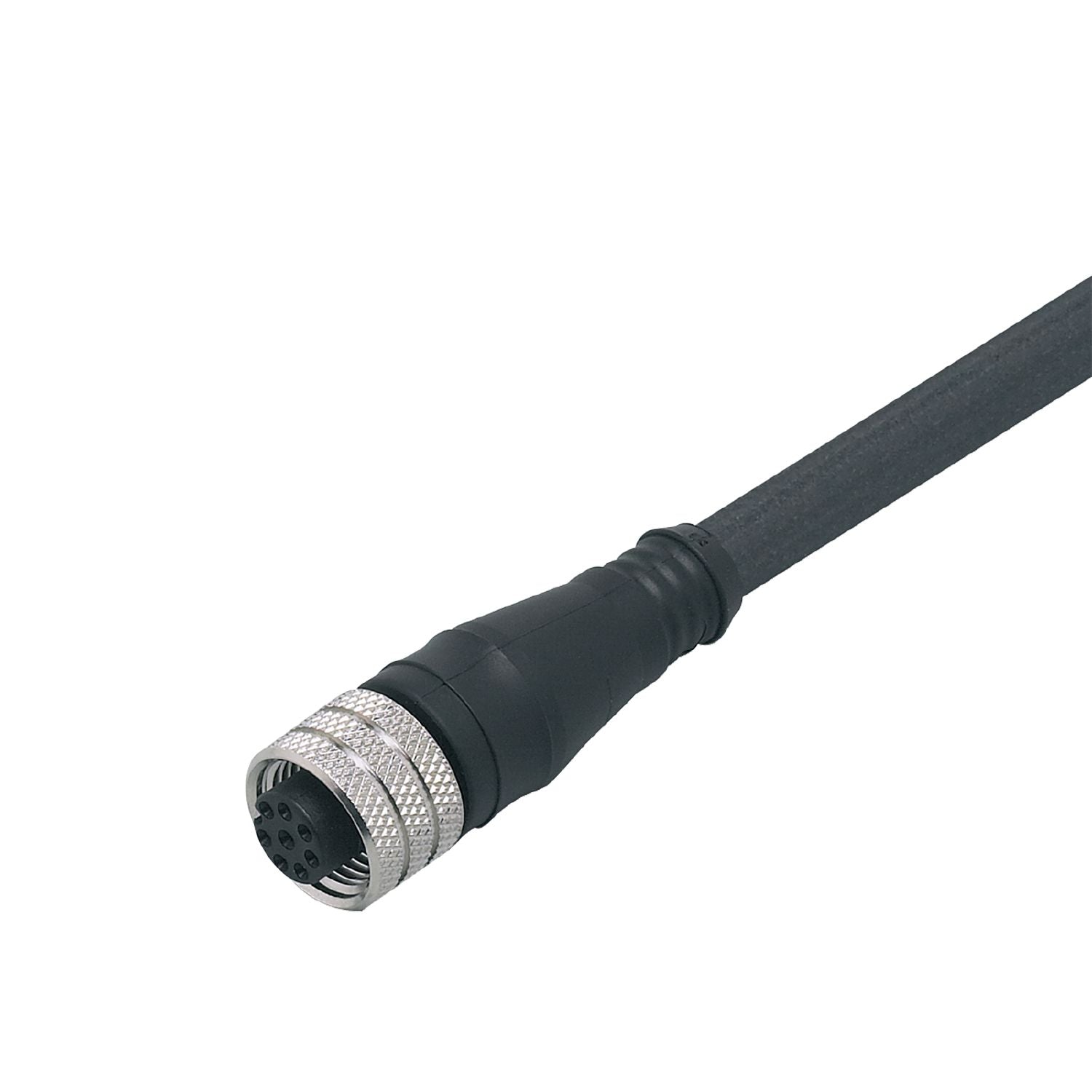

IFM E11950 - Connecting cable with socket ADOGH080MSS0002H08

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals

Special feature	Halogen-free

Operating voltage [V]	< 30 AC / < 36 DC

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 68

Weight [g]	135.9
Dimensions [mm]	15 x 15 x 43
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, black, Ø 6.2 mm; 8 x 0.25 mm²

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11950-00 — 06.11.2017 —
