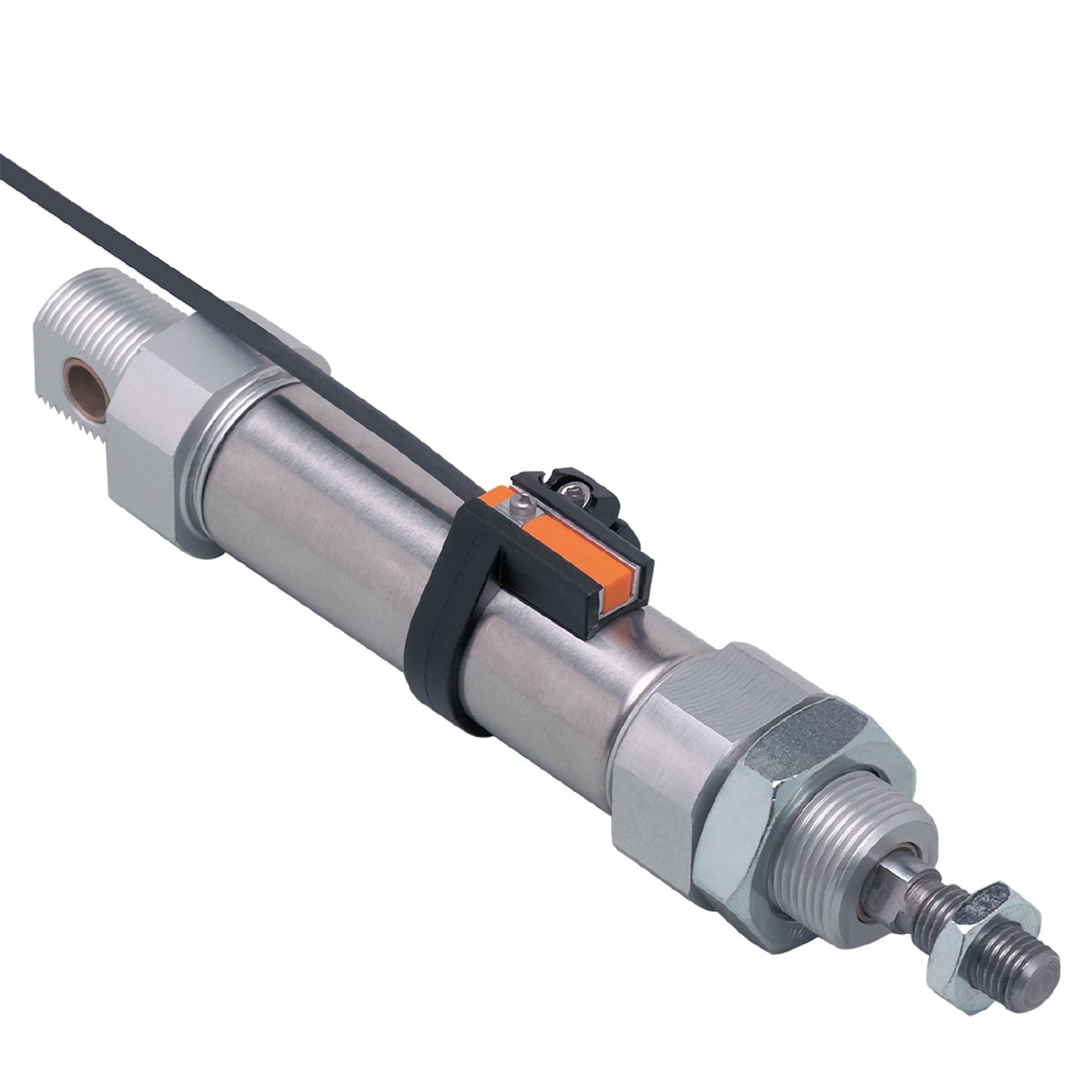

IFM E11958 - Clean-line cylinder mounting clamp for cylinder sensors CLAMP FOR CLEAN LINE CYL D16

For the adaptation of cylinder sensors to clean line cylinders.
Low height due to a perfectly adapted mechanical solution.
Protected position of the sensor in the adapter.
Easy, quick and secure mounting

Design	for types MKT

Operating conditions

Ambient temperature [°C]	0...50

Weight [g]	8.3
Materials	mounting clamp: POM; fixture: aluminium; screw: stainless steel
Tightening torque [Nm]	0.5;(Mounting screw)
Piston diameter [mm]	16

Accessories

Items supplied	socket head screws: 1 x SW2,5

Pack quantity	1 pcs.

Diagrams and graphs

Installation

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E11958-02 — 15.09.2010 —
