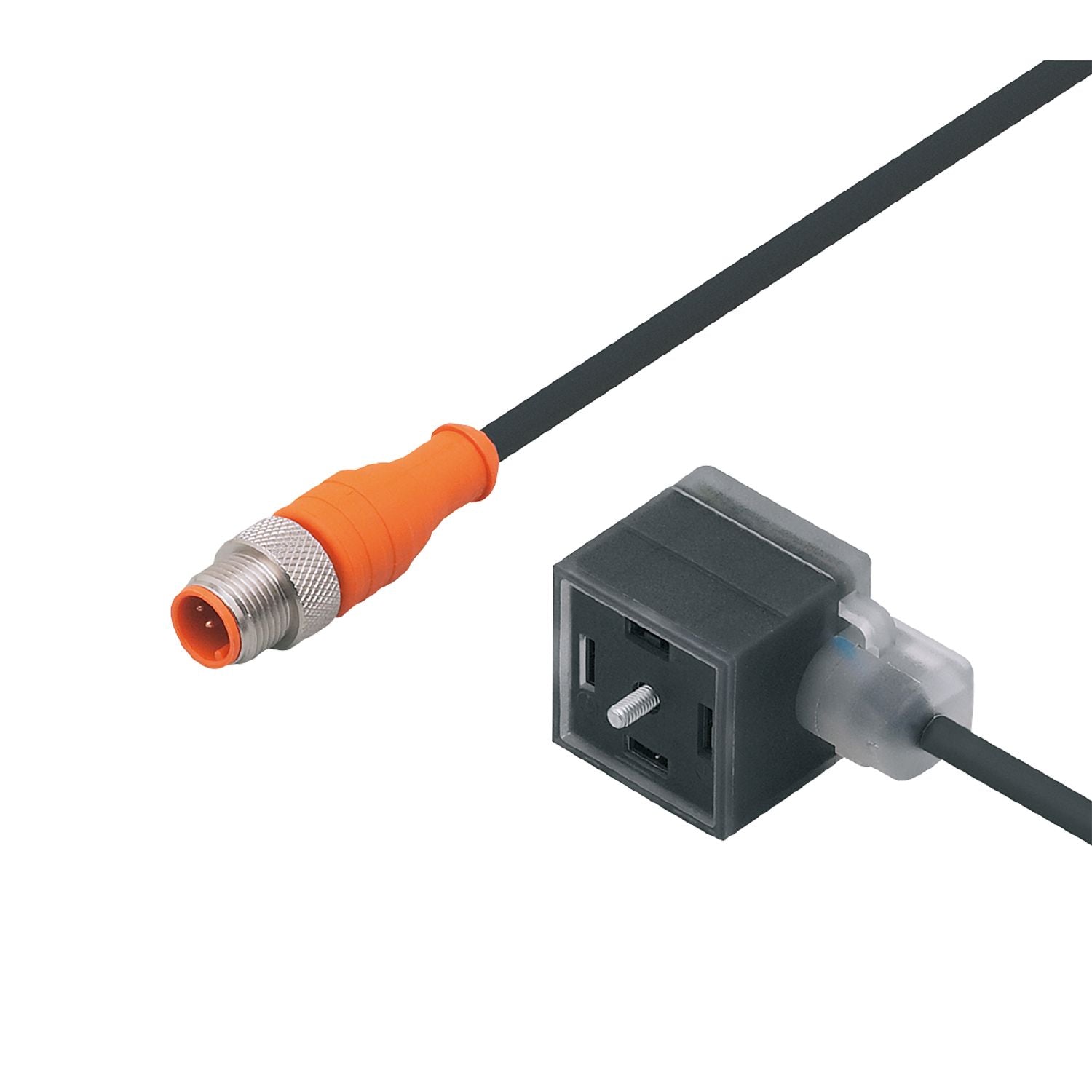

IFM E11963 - Jumper cable with valve plug VVDAA040MSS0003B03STGH030MSS

Reliable connection of valves in the field.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Clearly visible LED.
Robust rectangular connector

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 24 AC/DC
Overvoltage protection	free-wheeling diode

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	183.5
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	screw panel for labelling

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Contacts: gold-plated

Electrical connection

Connection	Cable: 3 m, PUR / PVC, Halogen-free; 3 x 0.5 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated; Contacts: nickel-plated brass
