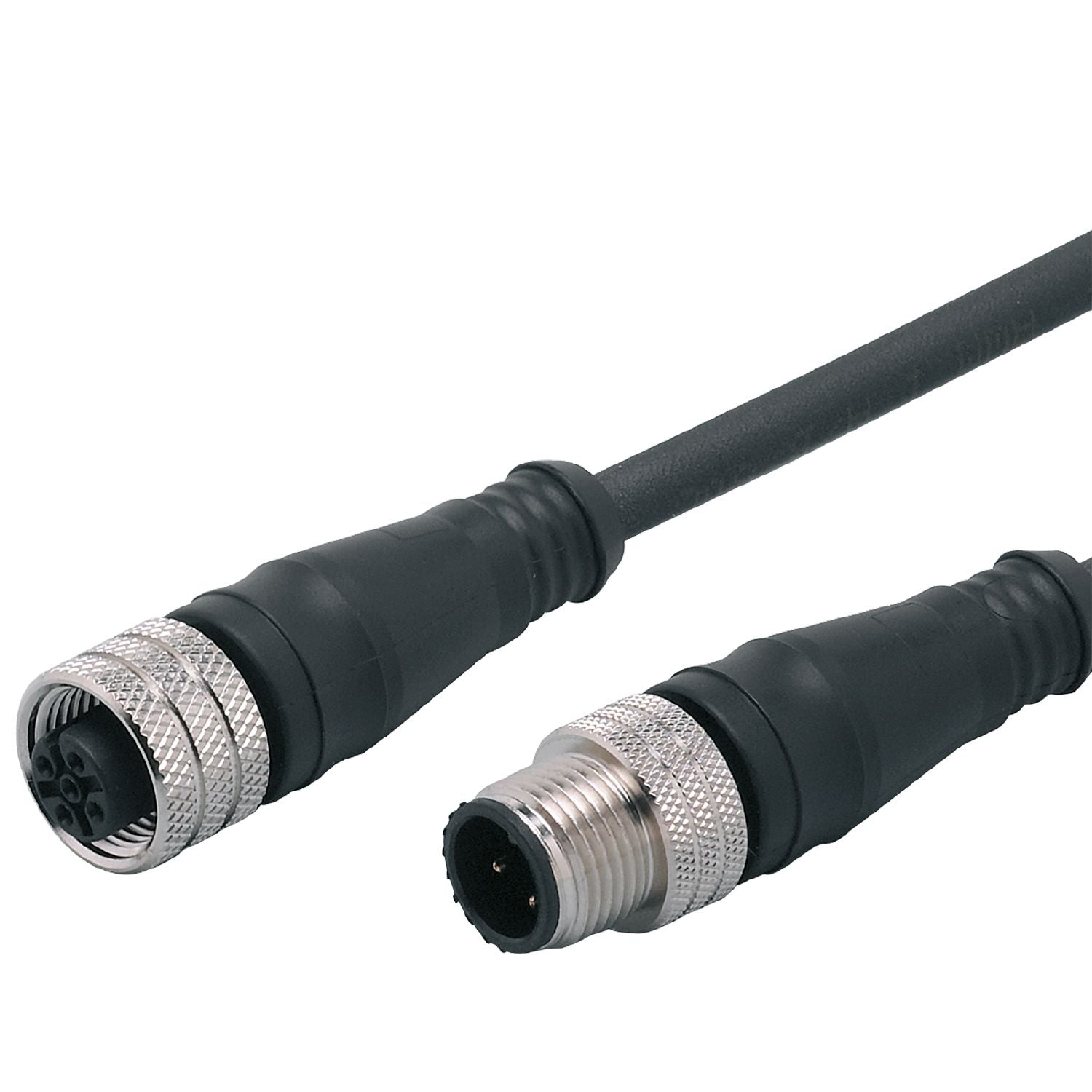

IFM E11974 - Connection cable cable Plus and Minus crossed

For changing the polarity of the supply voltage.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Design	for sensors programmable via wiring to change the polarity of the supply voltage on pin 1 and pin 3
Free from silicone	yes

Operating voltage [V]	< 250 AC / < 300 DC
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 68

Weight [g]	39.7
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm

Electrical connection

Connection	Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.7 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm
