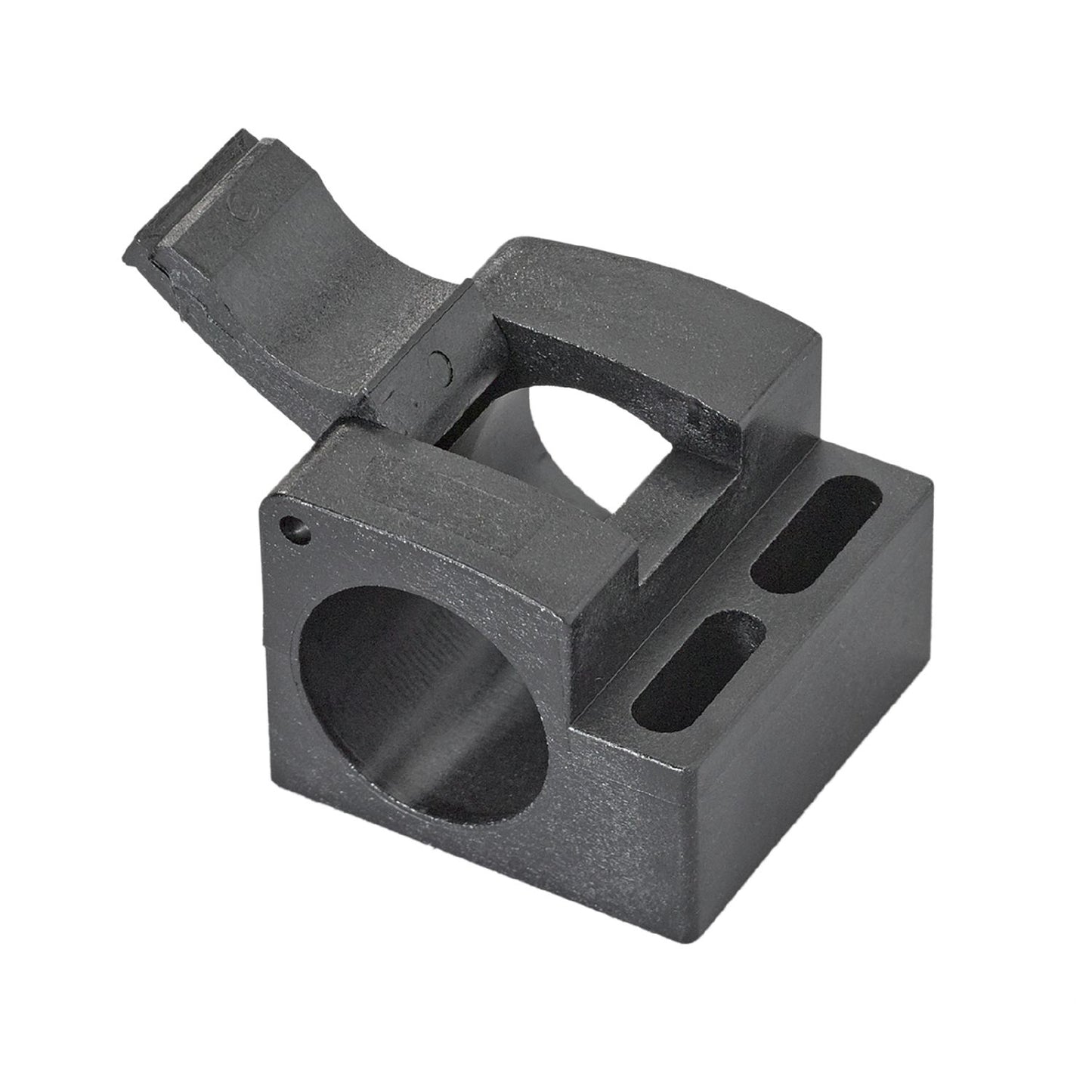

IFM E11995 - Mounting clamp for position sensors MOUNTING CLAMP M18

End stop for defined installation position.
Safe fixing of the sensor with click-fit mounting.
For mounting cylindrical sensors.
Easy, quick and inexpensive fixing.
Reliable mounting on a surface by means of two screws

Design	with end stop
Installation	for sensors with 45° chamfer

Operating conditions

Ambient temperature [°C]	-25...85

Weight [g]	12.5
Dimensions [mm]	24 x 30 x 29
Inside diameter [mm]	18
Materials	PC

Pack quantity	1 pcs.
