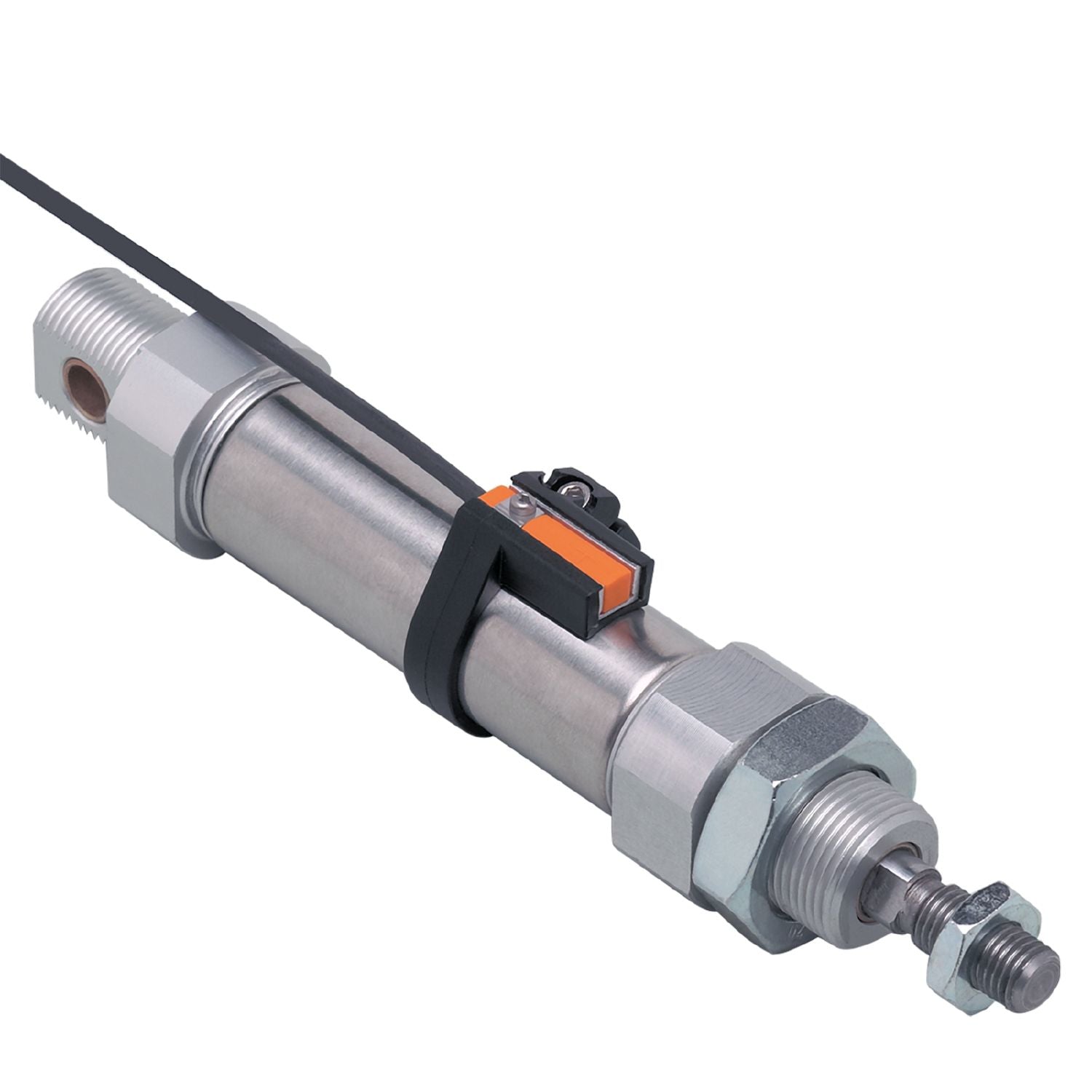

IFM E12015 - Clean-line cylinder mounting clamp for cylinder sensors CLAMP FOR CLEAN LINE CYL 40/45

For the adaptation of cylinder sensors to clean line cylinders.
Low height due to a perfectly adapted mechanical solution.
Protected position of the sensor in the adapter.
Easy, quick and secure mounting

Design	for types MKT

Operating conditions

Ambient temperature [°C]	0...50

Weight [g]	12.1
Materials	mounting clamp: POM; fixture: aluminium; screw: stainless steel
Tightening torque [Nm]	0.5;(Mounting screw)
Clamping range [mm]	44...45
Piston diameter [mm]	40

Accessories

Items supplied	socket head screws: 1 x SW2,5

Pack quantity	1 pcs.

Diagrams and graphs

Installation
