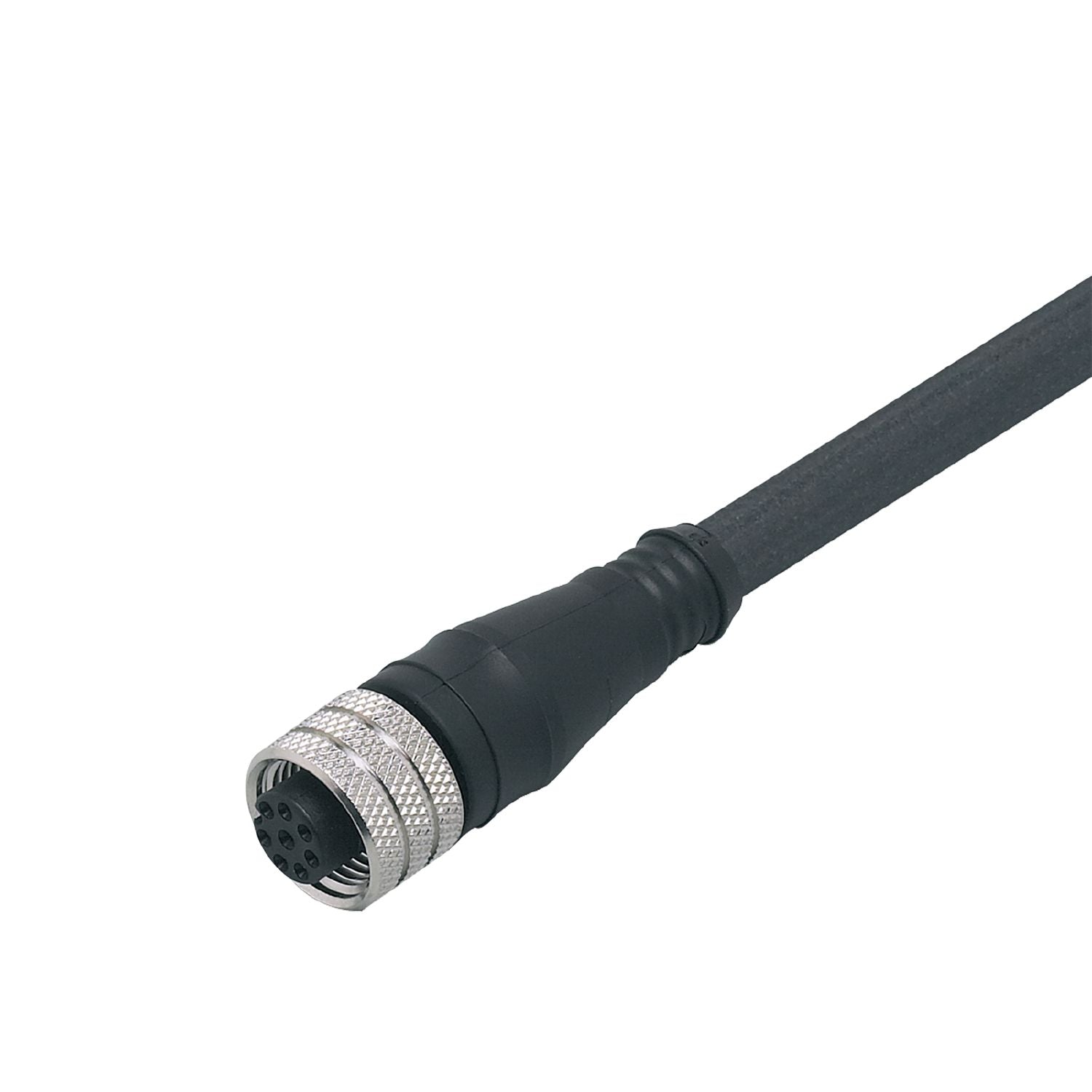

IFM E12166 - Connecting cable with socket ADOGH080MSS0005B08

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-40...80
Protection	IP 67

Weight [g]	292.5
Dimensions [mm]	15 x 15 x 43
Materials	housing: TPU black
Moulded-body material	TPU
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, black; 8 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 1...1.5 Nm
