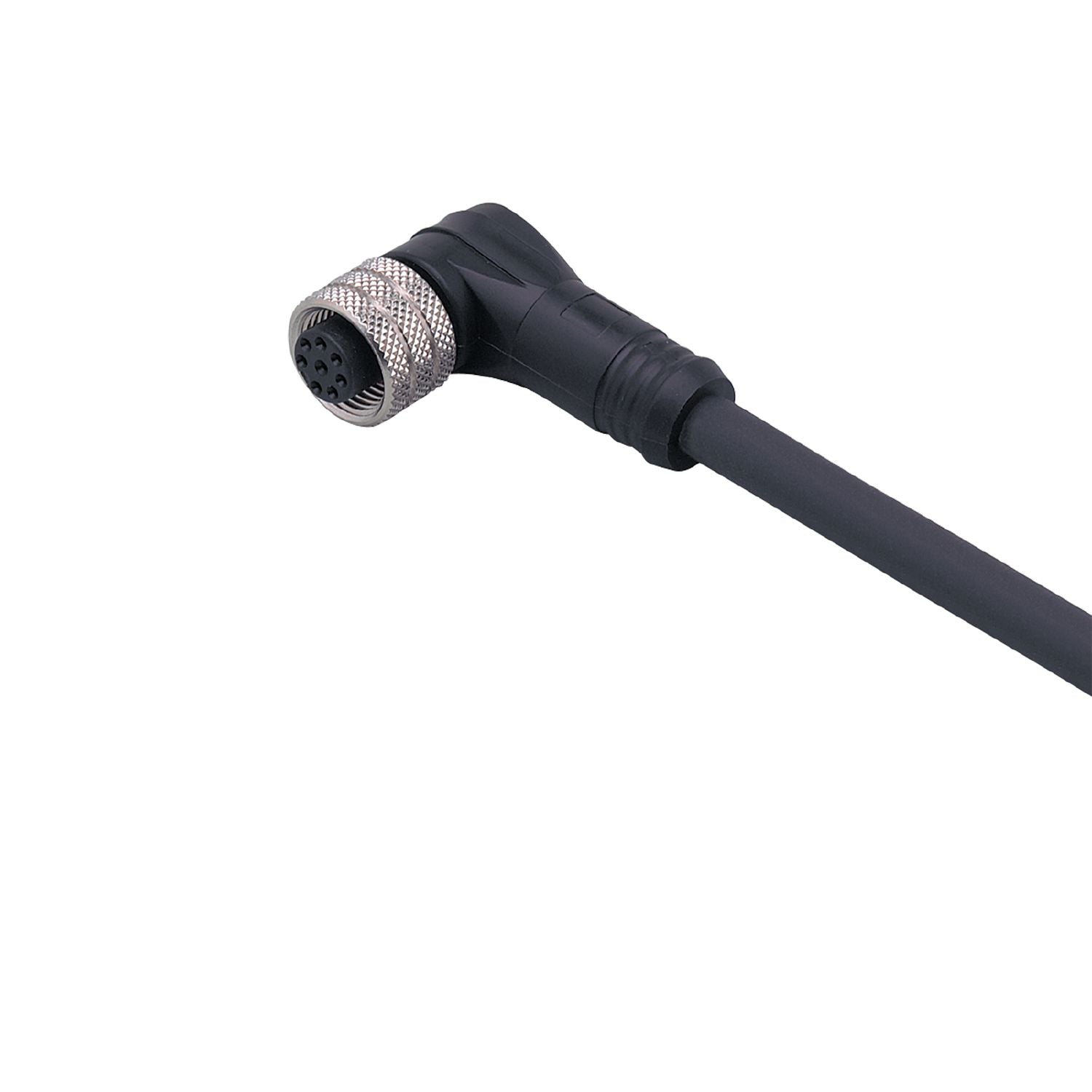

IFM E12168 - Connecting cable with socket ADOAH080MSS0005B08

8-pole connection.
High protection rating for the requirements of harsh industrial environments.
Reliable transmission of the sensor signals.
Wide operating temperature range.
Angled type for use where space is restricted

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-40...80
Protection	IP 68

Weight [g]	284
Dimensions [mm]	28 x 15 x 38
Materials	TPU
Moulded-body material	TPU
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, black; 8 x 0.25 mm² (14 x Ø 0.15 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 1...1.5 Nm
