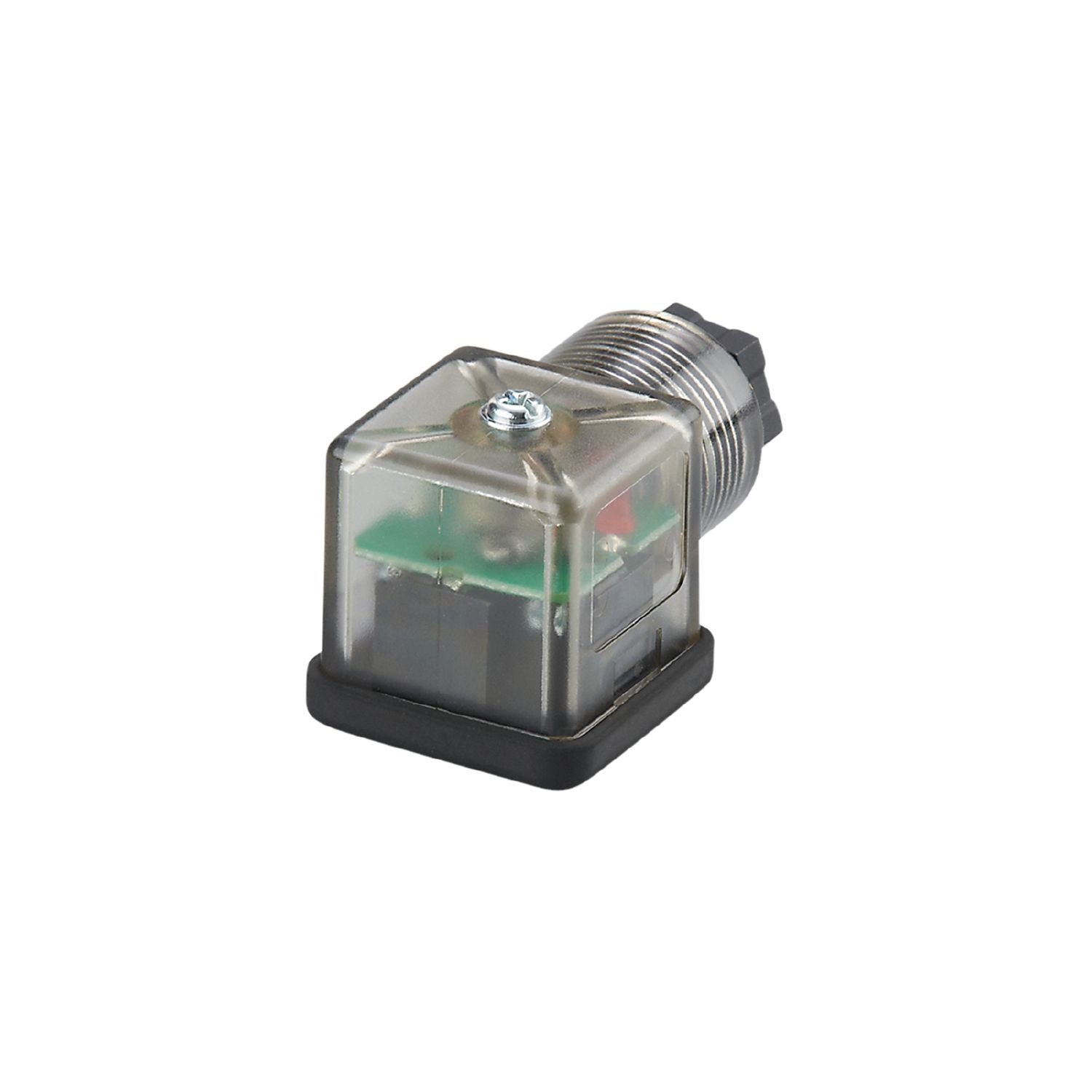

IFM E12224 - Wirable valve connector SVDAA031PLSFKPG

Reliable connection of valves in the field.
With integrated protective circuitry.
Wide operating temperature range.
Clearly visible LED.
Angled type for use where space is restricted

Special feature	Free from silicone
Free from silicone	yes

Operating voltage [V]	< 24 DC
Max. current load total [A]	16

Operating conditions

Ambient temperature [°C]	-40...125
Protection	IP 65

Weight [g]	29.4
Materials	housing: PA transparent; end cap: PA black; Sealing: NBR black

Pack quantity	1 pcs.

Electrical connection

	terminals: 4 x ...1.5 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - socket

Connection	Connector: 1 x valve type A DIN, angled

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12224-00 — 31.05.2010 —
