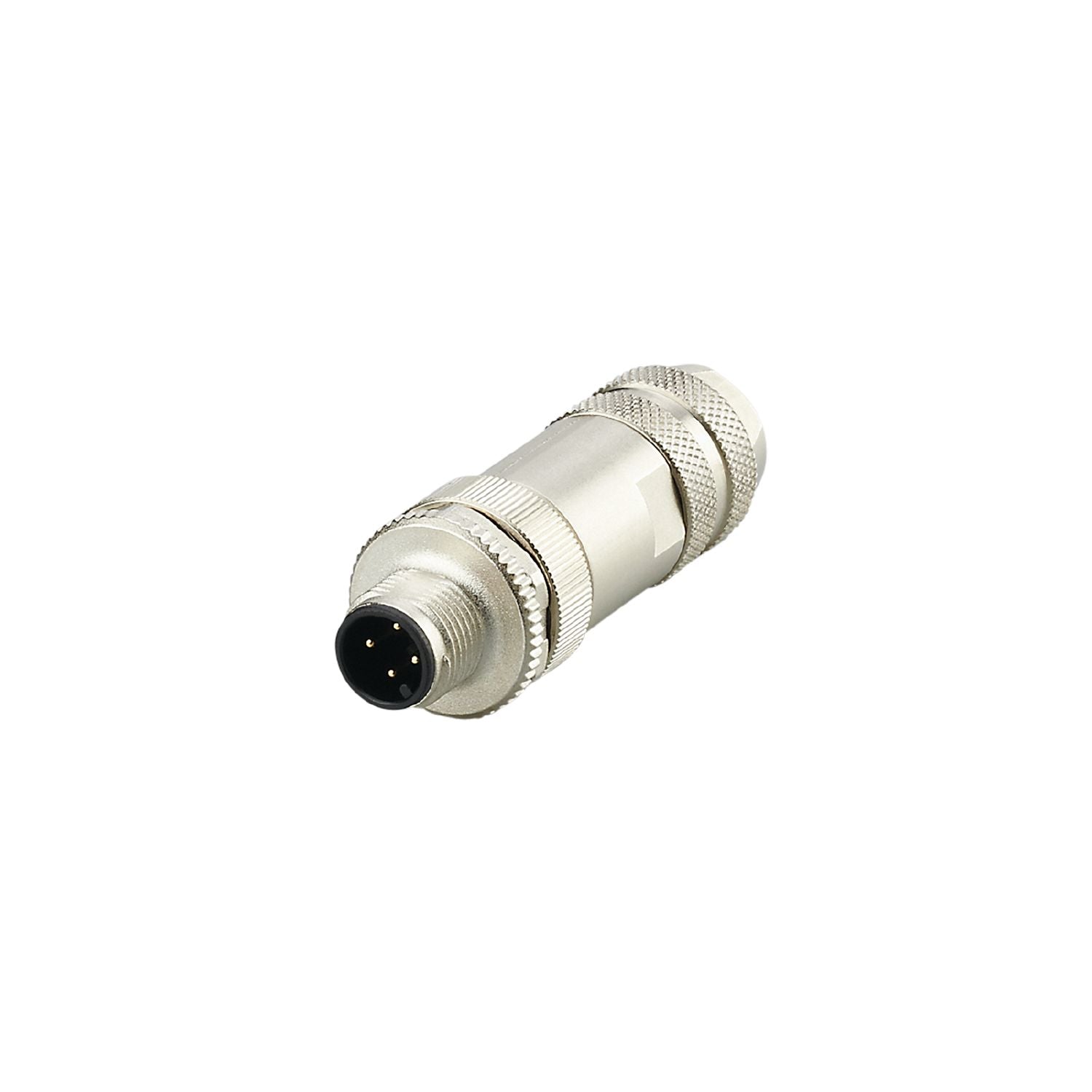

IFM E12261 - Wirable plug SSTGH040MSSFKSG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 250 AC/DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	44.5
Dimensions [mm]	20 x 20 x 62
Materials	diecast zinc nickel-plated
Moulded-body material	diecast zinc, nickel-plated
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	screw terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: diecast zinc, nickel-plated; Locking: brass, nickel-plated; Contacts: gold-plated; Shielded connection cable: shieldable

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12261-00 — 23.01.2012 —
