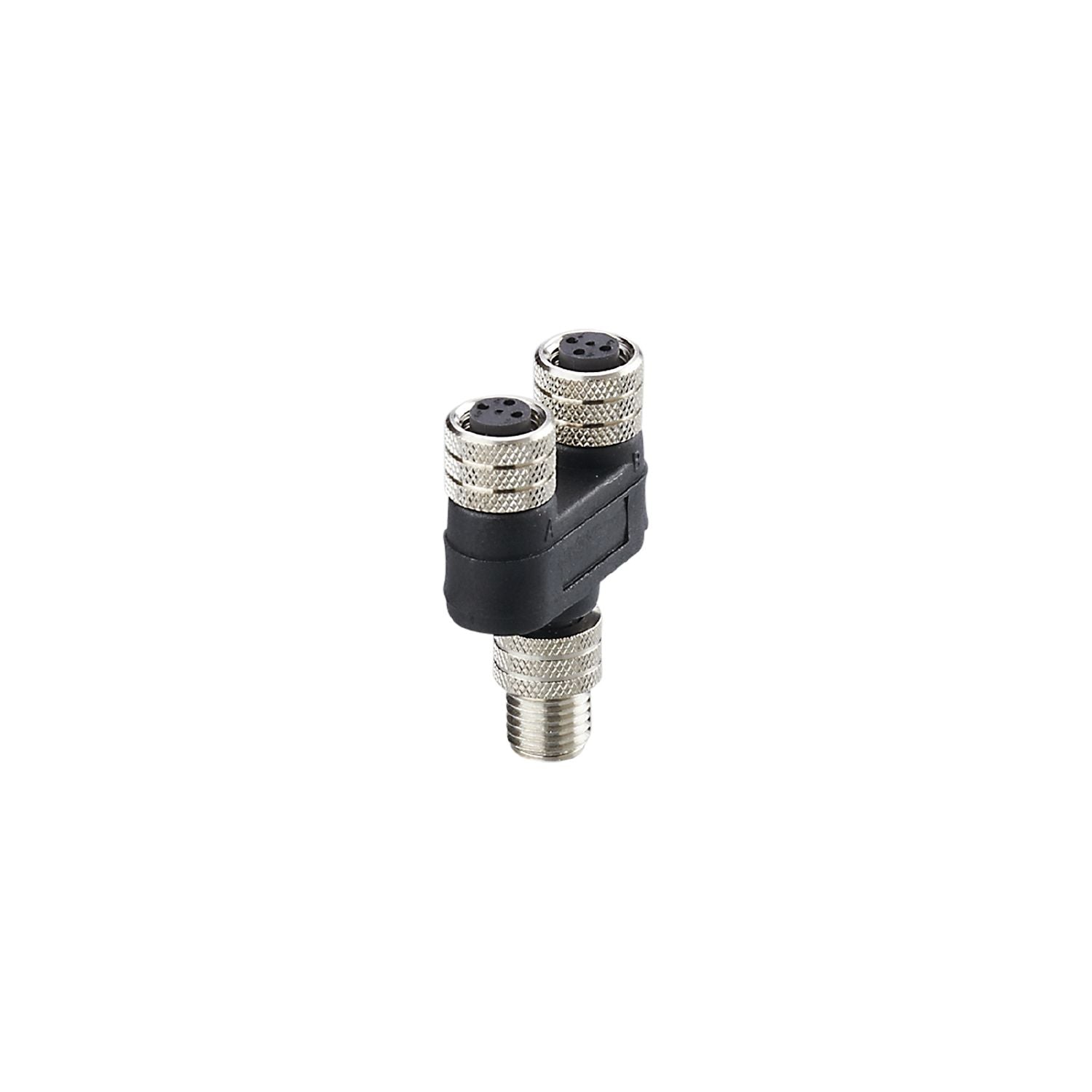

IFM E12269 - Y-splitter ZDO2F030MSS0000-00STGF040MSS

For use in applications with many inputs and outputs where space is restricted.
High protection rating for the requirements of harsh industrial environments.
Gold-plated contacts for reliable electrical connections.
Wide operating temperature range

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 30 AC/DC
Protection class	III
Max. current load per module/slot [A]	3
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 68

Weight [g]	15.7
Dimensions [mm]	11 x 27 x 38
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated
Number of ports splitter box	2
Connector type	M8

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M8; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated

Electrical connection - socket

	Connector: 2 x M8; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated
