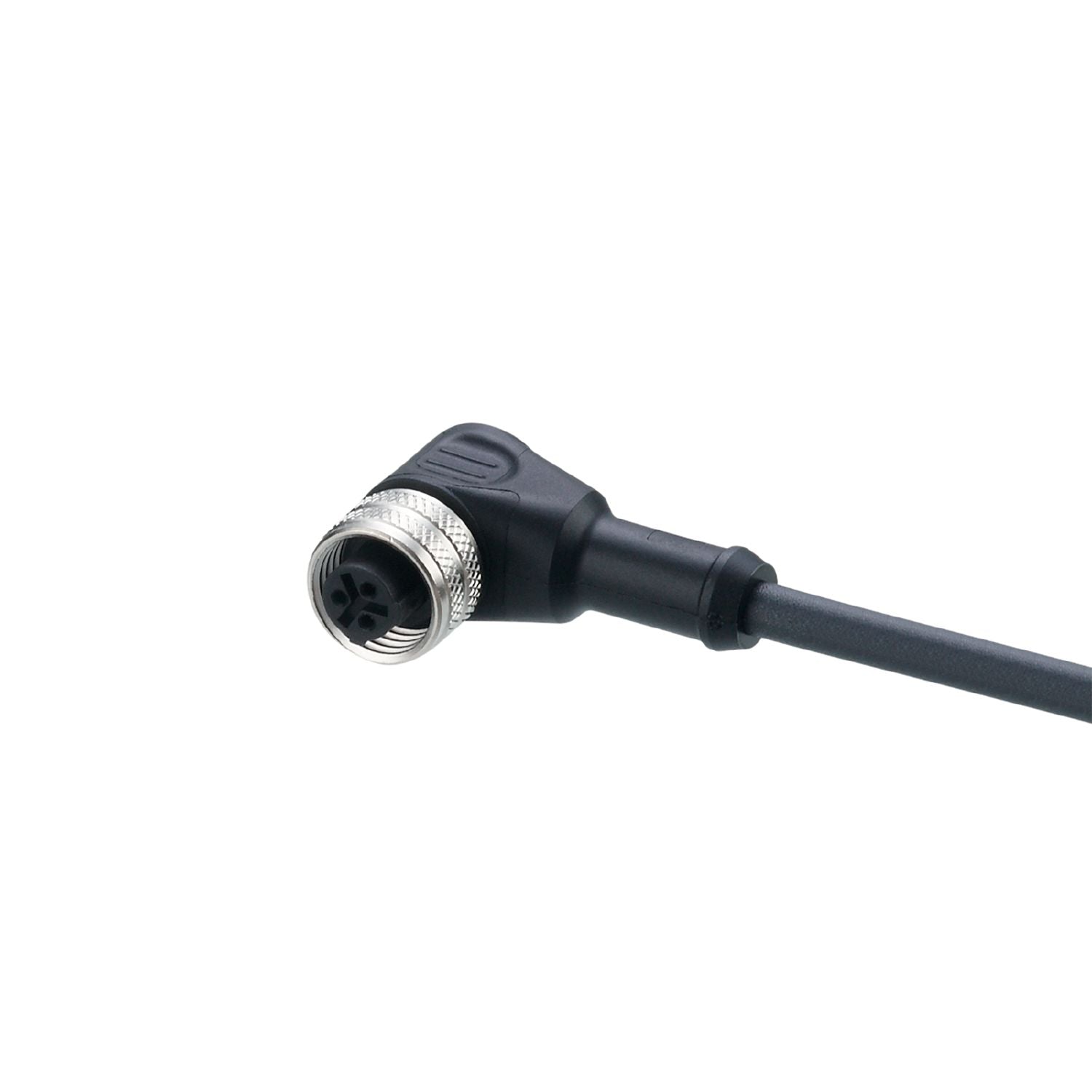

IFM E12286 - Connecting cable with socket ADOAA030MSS0010H03

Angled type for use where space is restricted.
Gold-plated contacts for reliable electrical connections.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range

Special feature	Halogen-free; Drag chain suitability

Operating voltage [V]	< 250 AC / < 300 DC

Operating conditions

Ambient temperature [°C]	-25...90
Protection	IP 67

Weight [g]	386.5
Dimensions [mm]	26 x 14.5 x 38.5
Materials	TPU black
Moulded-body material	TPU
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 2 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR, Halogen-free, black, Ø 5.2 mm; 3 x 0.5 mm² (64 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x 1/2", angled; coding: C; Moulded body: TPU; Locking: brass, nickel-plated
