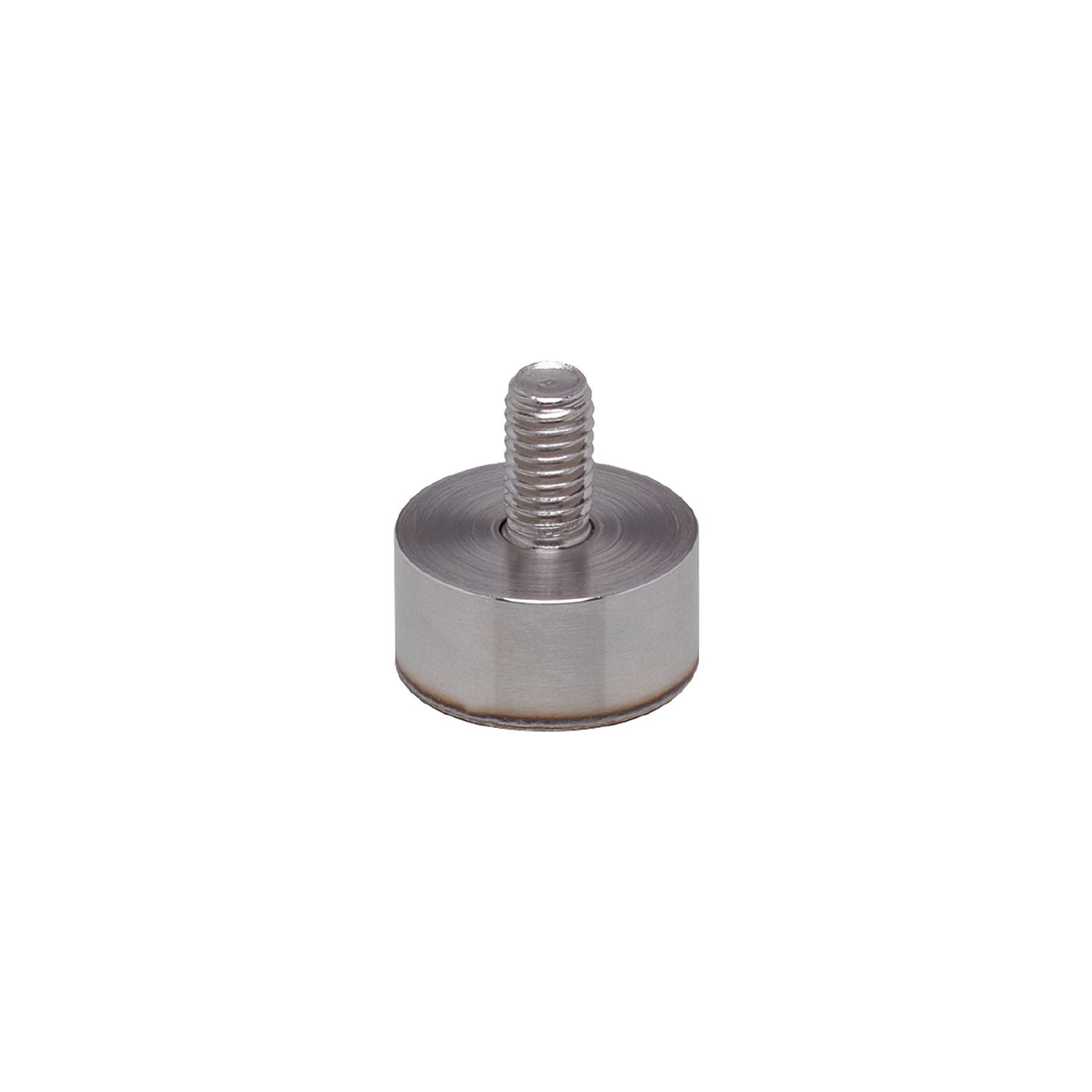

IFM E12291 - Damping magnet MAGNET M3.1/HARD F.STAINLESS

For ensuring a long sensing range.
For use in combination with magnetic sensors.
Hidden installation behind aluminium or stainless steel is possible.
Wide operating temperature range
Operating conditions

Ambient temperature [°C]	-25...250

Weight [g]	22.7
Dimensions [mm]	Ø 20
Materials	hard ferrite HF 26/22; stainless steel (1.4571/316Ti )
Magnetic field strength [mT]	70

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12291-01 — 10.01.2020 —
