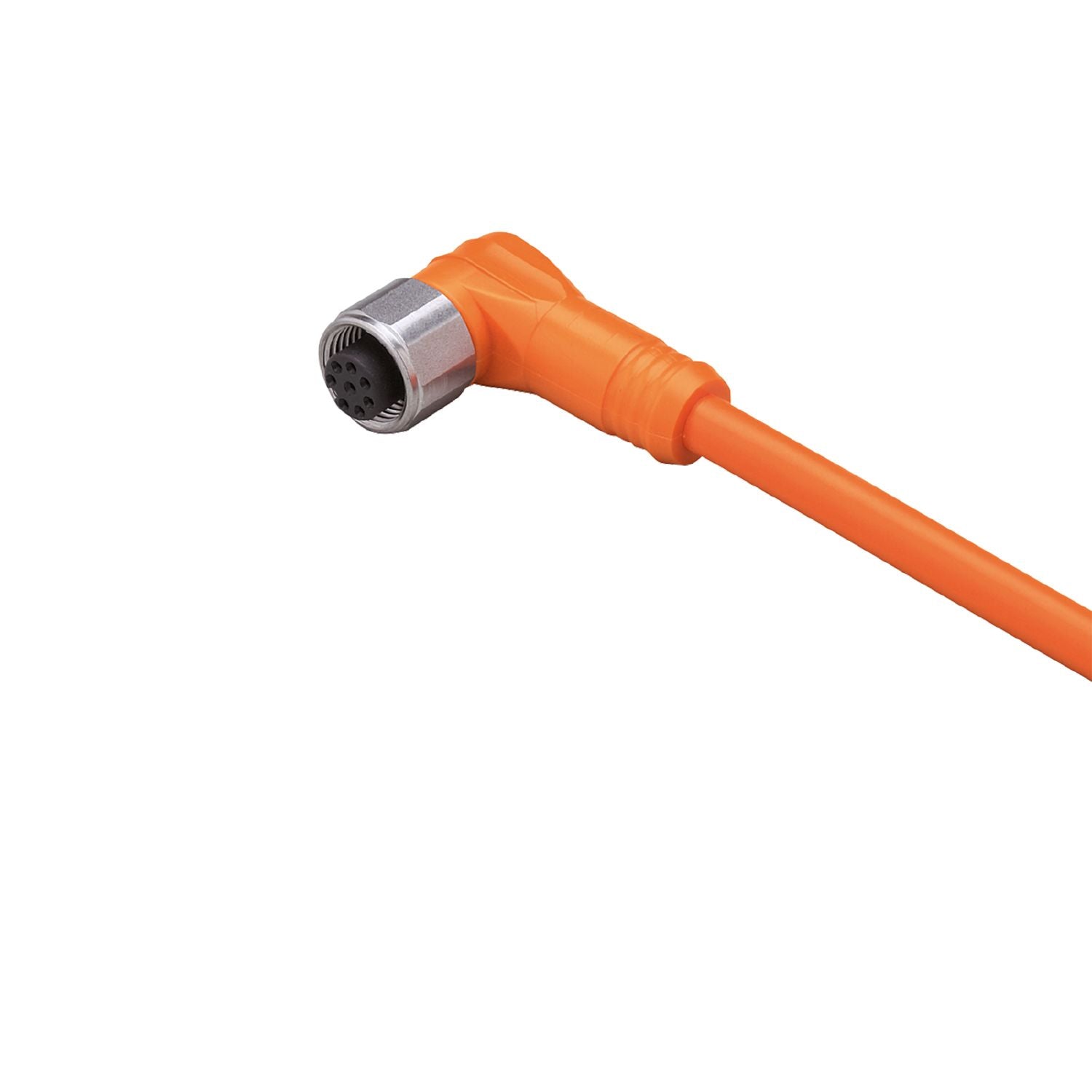

IFM E12296 - Connecting cable with socket ADOAH080VAS0010E08

Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of the food and beverage industry.
8-pole connection.
Wide operating temperature range.
Angled type for use where space is restricted

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-25...100
Protection	IP 68; IP 69K

Weight [g]	637.5
Dimensions [mm]	26.5 x 15 x 38.5
Materials	PVC
Moulded-body material	PVC
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PVC, orange, Ø 6.6 mm; 8 x 0.25 mm² (32 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, angled; coding: A; Moulded body: PVC; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm
