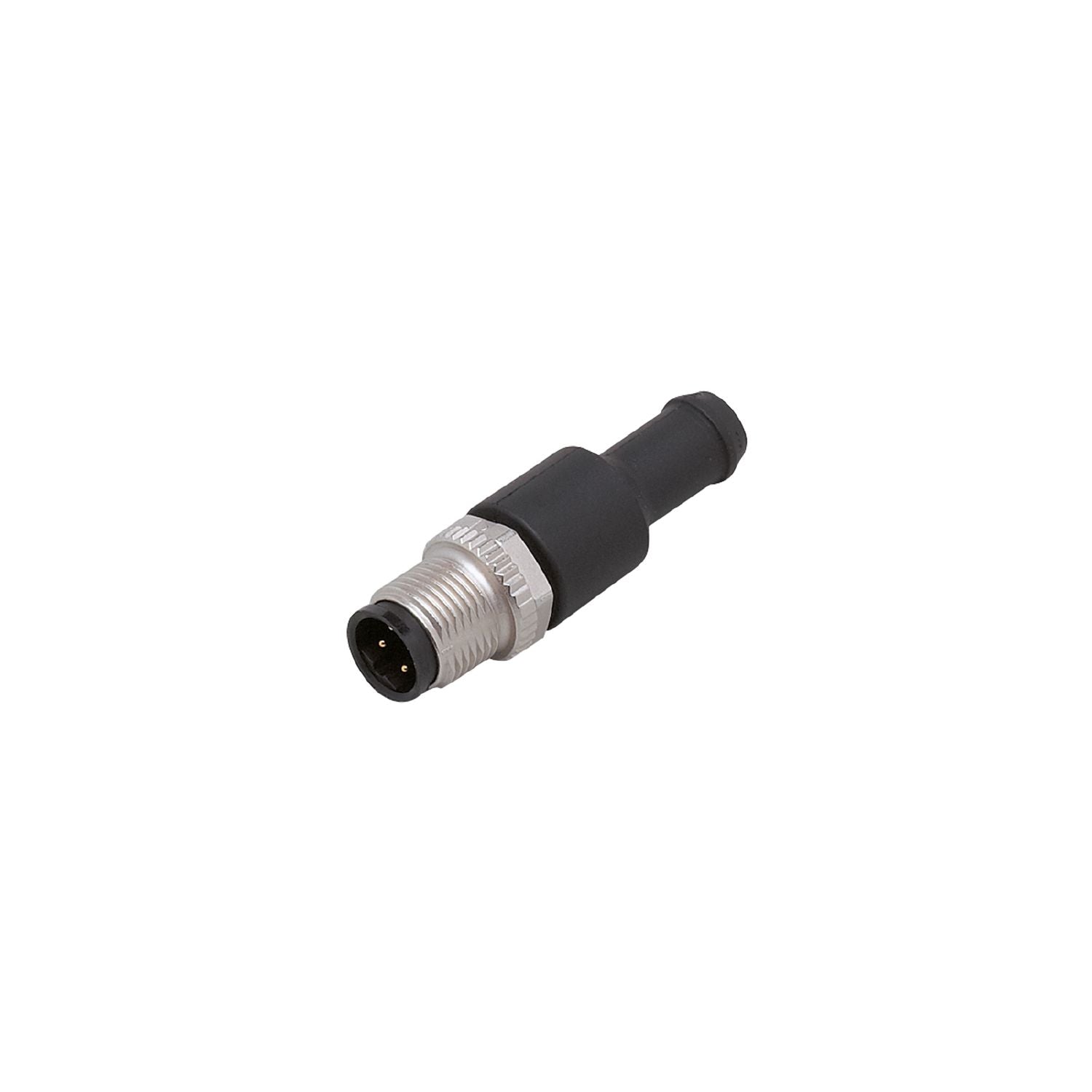

IFM E12315 - Terminating resistor for PROFIBUS DP ProfiBus Terminat. Resistor

Reliable connection technology for PROFIBUS participants.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Gold-plated contacts for reliable electrical connections.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...85
Protection	IP 67

Weight [g]	9.9
Dimensions [mm]	14.5 x 14.5 x 48.5
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: B; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm
