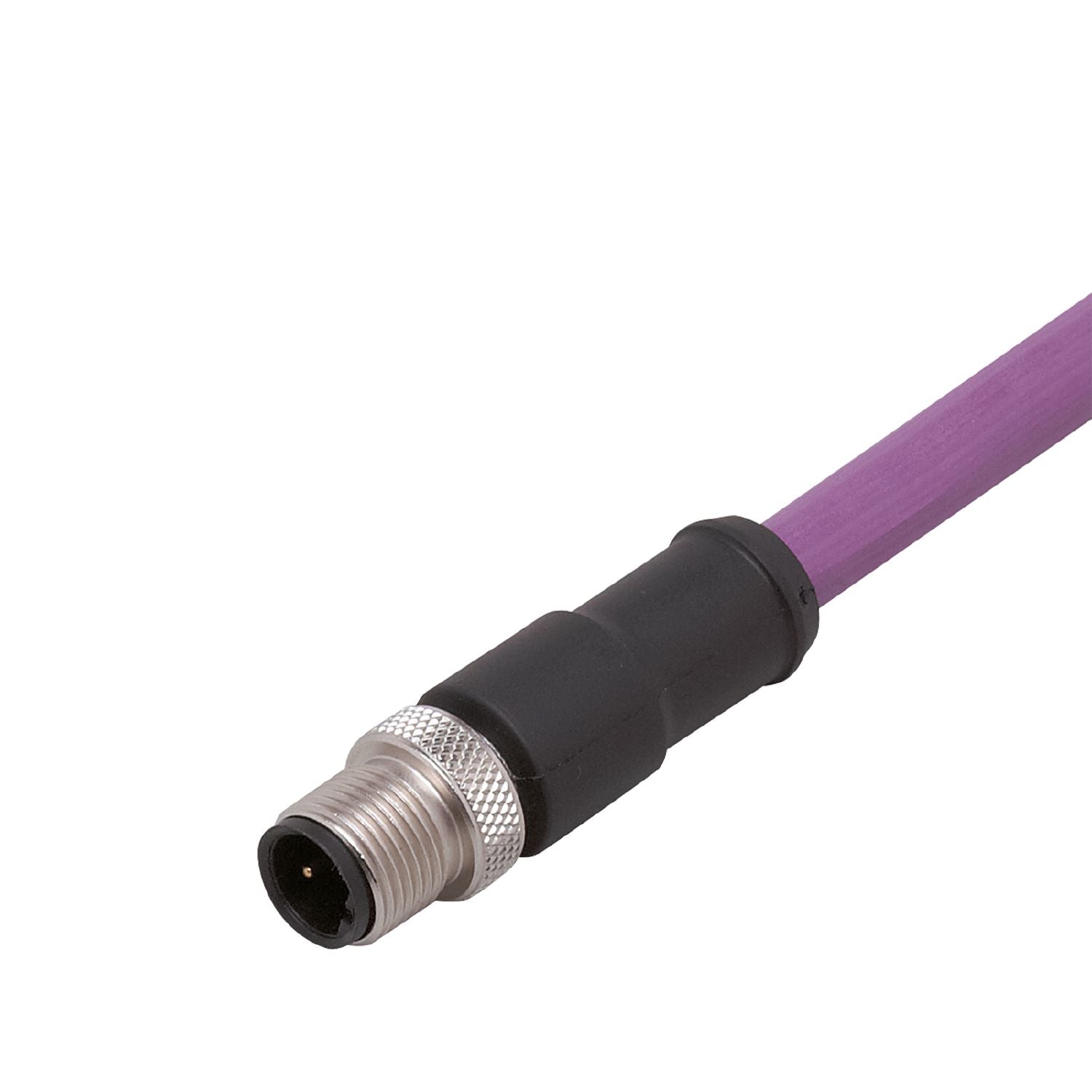

IFM E12318 - Connecting cable with plug ASTGH020MSS0002C02

High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Good electromagnetic compatibility thanks to shielded cable.
Suited for use in mobile machines.
Gold-plated contacts for reliable electrical connections

Special feature	Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability

Operating voltage [V]	< 30 AC / < 36 DC
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-40...70
Ambient temperature (moving) [°C]	-20...50
Protection	IP 67

Weight [g]	145.2
Dimensions [mm]	14.5 x 14.5 x 48.5
Materials	PUR
Moulded-body material	PUR
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 7.5 x cable diameter bending radius for fixed installation min. 10 x cable diameter travel speed max. 5.5 m/s for a horizontal travel length of 5m and max. acceleration of 10 m/s² bending cycles > 5 Mio. max. permissible tensile strength 50 N/mm² static 20 N/mm² dynamic

Pack quantity	1 pcs.

Electrical connection

	Cable: 2 m, PUR, Halogen-free, lilac, Ø 8 mm, shielded; 2 x 0.25 mm²

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: B; Moulded body: PUR; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6 Nm; Shielded connection cable: screen connected
